SKU: 6012-2Z-C3-FAG

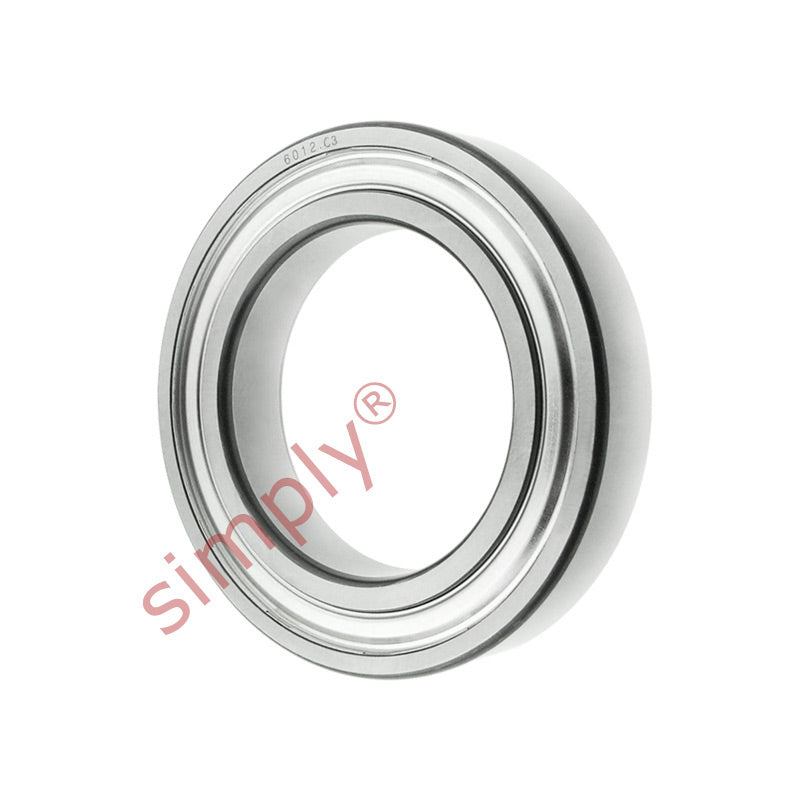

FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm
Equivalent to: 6012ZZEC3 6012ZZC3 6012.2ZC3 6012KDDC3 6012DDC3 60122ZRC3 6012FFC3
In stock
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 18mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 7500 rpm |
| Mass | 0.42 kg |
| d1 | 71.3mm |
| D2 | 86.5mm |
| r1r2 min | 1.1mm |
| da min | 66 |
