SKU: 6003-RS1TN9/C4-SKF

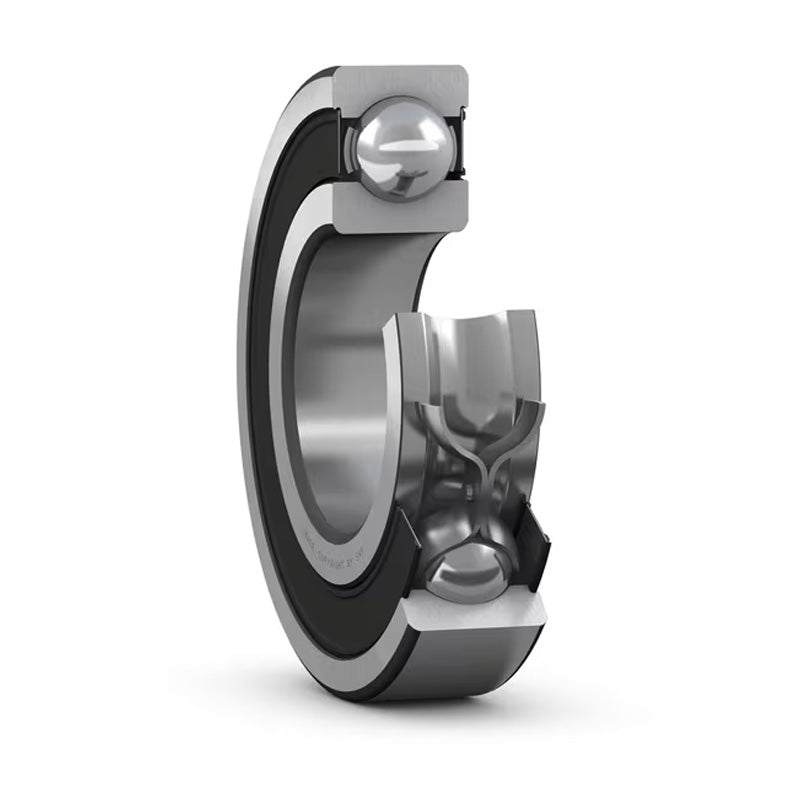

SKF 6003RS1TN9C4 Rubber Sealed Deep Groove Ball Bearing with Glass Fibre Reinforced Polyamide Cage 17x35x10mm
SKF 6003RS1TN9C4 Rubber Sealed Deep Groove Ball Bearing with Glass Fibre Reinforced Polyamide Cage 17x35x10mm
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.039 kg |
| d2 | 20.7mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| da max | 20.5mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
