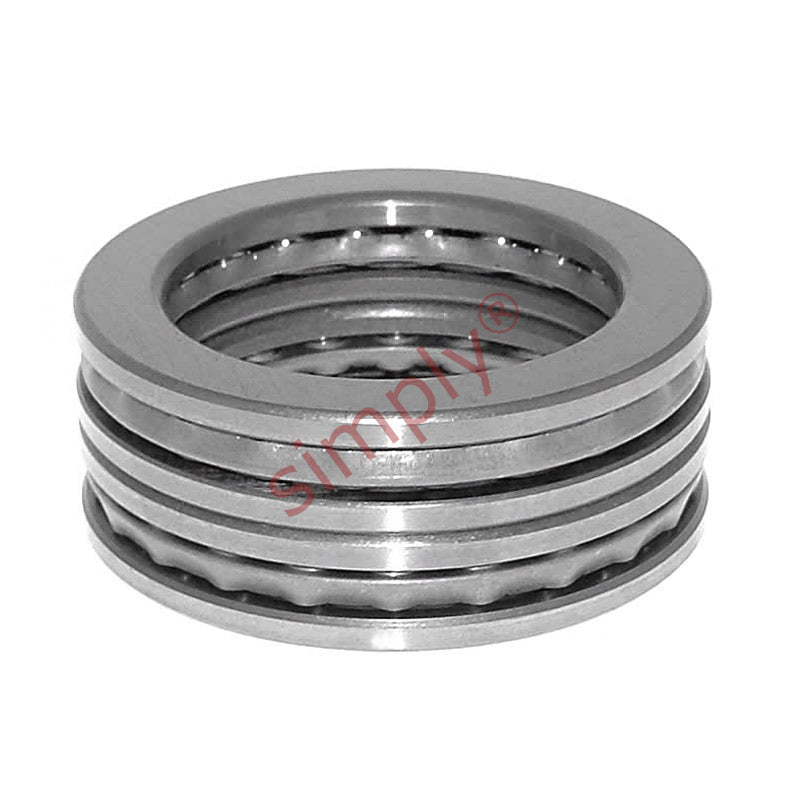

SKF 54416M Double Thrust Ball Bearing with Spherical Housing Washers 65x170x140mm

Name: SKF 54416M Double Thrust Ball Bearing with Spherical Housing Washers 65x170x140mm
Brand: SKF
SKU: 54416M-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 170mm
Width:: 140mm

Technical

d	65mm
D	170mm
H1	140mm
Dynamic load C	270 kN
Static load Co	670 kN
Fatigue load limit Pu	22.4 kN
Minimum load factor A	2.3
Reference speed	1200 rpm
Limiting speed	1700 rpm
Weight	1.4 kg
Seating washer	U416
D1	83mm
D2	125mm
D3	175mm
H	128.5mm
B	27mm
C	22mm
R	125mm
s	30.5mm
r1r2	2.1mm
r3r4	1mm
da	80mm
Da max	125mm
ra max	2mm
rb max	1mm
