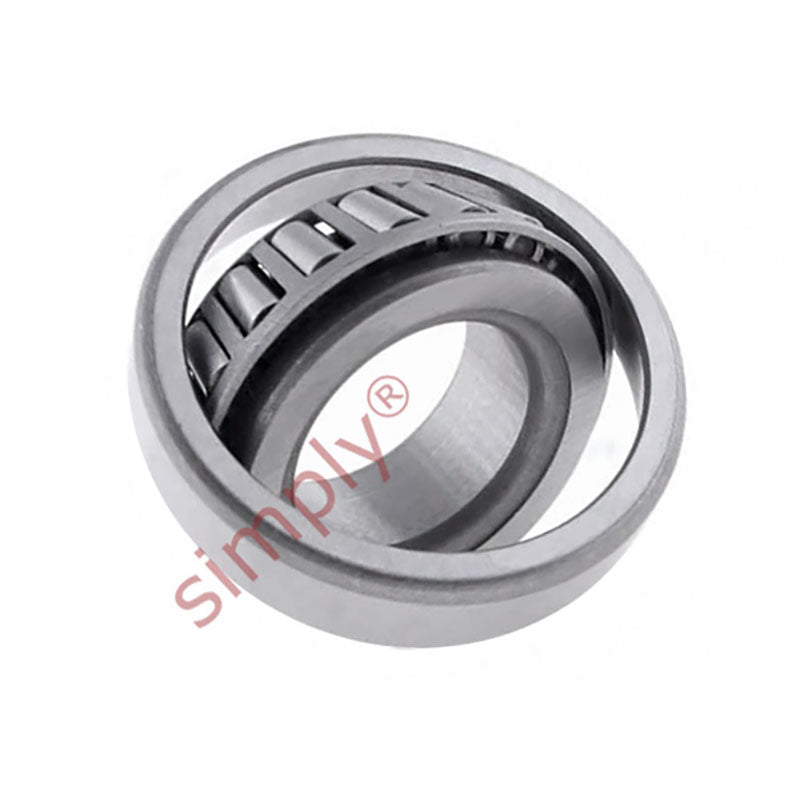

SKF 539/532A Imperial Taper Roller Bearing 2.125x4.375x1.5 inches

Name: SKF 539/532A Imperial Taper Roller Bearing 2.125x4.375x1.5 inches
Brand: SKF
SKU: 539/532A-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 53.98mm = 2.125 (2-1/8) inch
Outside Diameter:: 111.13mm = 4.375 (4-3/8) inch
Width:: 38.1mm = 1.5 (1-1/2) inch
Seals / Shields:: None

Technical

d	53.975mm
D	111.125mm
T	38.1mm
Dynamic load	151 kN
Static load	190 kN
Fatigue load limit Pu	22.8 kN
Reference speed	4800 rpm
Limiting speed	7000 rpm
Weight	1.55 kg
d1	76.5mm
B	36.957mm
C	30.162mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	24mm
da max	64mm
db min	65.5mm
Da min	90mm
Da max	95.5mm
Db min	97mm
Ca min	5mm
Cb min	7.5mm
ra max	3mm
rb max	3mm
Calculation factor e	0.3
Calculation factor Y	2
Calculation factor Y0	1.1
