SKU: 4T-941/932-NTN

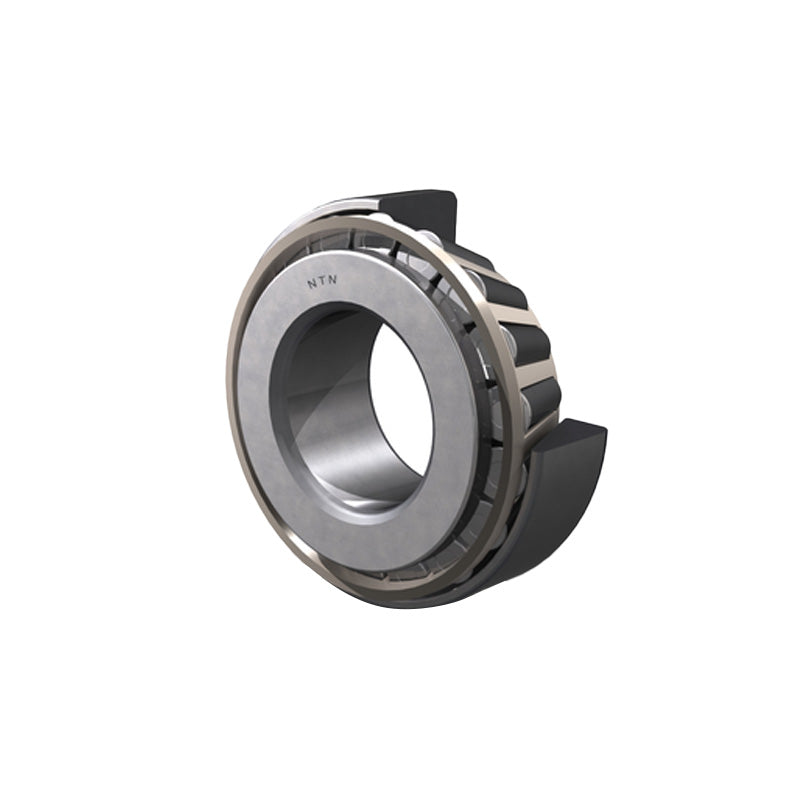

NTN 4T-941/932 Tapered Roller Bearing Cup and Cone Set 4x8.375x2.625 inch

NTN 4T-941/932 Tapered Roller Bearing Cup and Cone Set 4x8.375x2.625 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 4 inch (101.6mm)
D (inch) 8.375 inch (212.725mm)
T 2.625 inch (66.675mm)
B 2.625 inch (66.675mm)
C 2.13 inch (53.975mm)
--- Speeds and loads
C<sub>r</sub> 525kN
C<sub>or</sub> 695kN
Speed in grease 1800rpm
Speed in oil 2300rpm
--- Abutment dimensions
d<sub>a</sub> 130mm
d<sub>b</sub> 117mm
D<sub>a</sub> 187mm
D<sub>b</sub> 193.1mm
r<sub>as</sub> max 7mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> 19.7mm
Constant e 0.33
Axial load factor Y<sub>2</sub> 1.84
Axial load factor Y<sub>0</sub> 1.01
Weight 11.2kg
