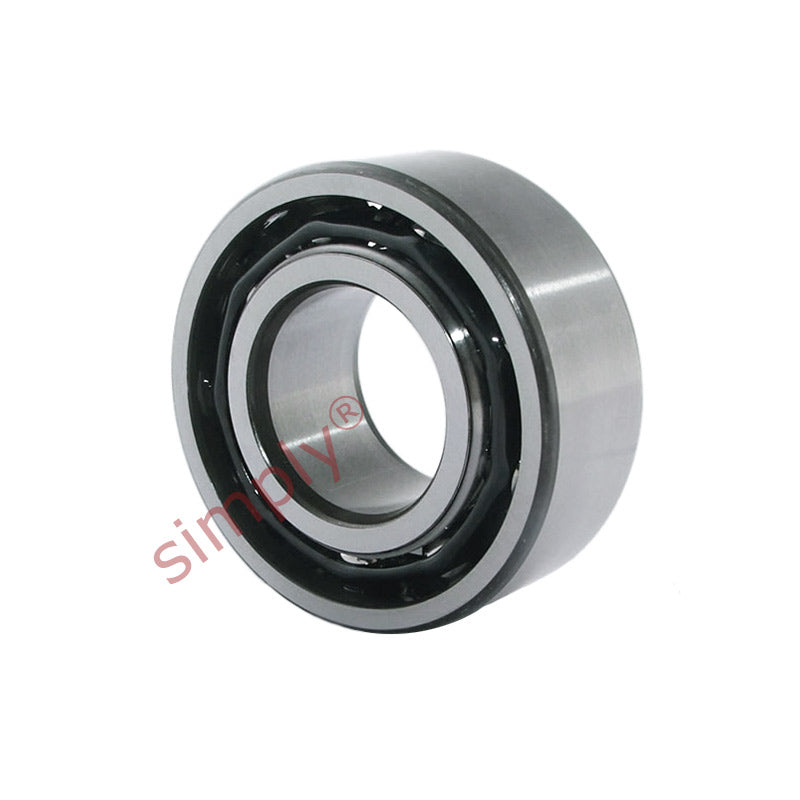

FAG 4200BTVC3 Double Row Deep Groove Ball Bearing 10x30x14mm
FAG 4200BTVC3 Double Row Deep Groove Ball Bearing 10x30x14mm
Out of stock
Share this product
Description
Description
|
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 14mm |
| d1 | 16.7mm |
| D1 | 14mm |
| r min | 0.6mm |
| Basic dynamic load rating C | 9.23 kN |
| Basic static load rating C0 | 5.3 kN |
| Fatigue load limit Pu | 0.224 kN |
| Reference Speed | 40000 rpm |
| Limiting Speed | 22000 rpm |
| Weight | 0.06 kg |
