SKU: 41-1-SD-NO4-RENOLD
Renold SD 41-1-NO4 ANSI / AS Simplex Chain Inner Link 1/2 inch Pitch
Renold SD 41-1-NO4 ANSI / AS Simplex Chain Inner Link 1/2 inch Pitch
Out of stock
Description
Description

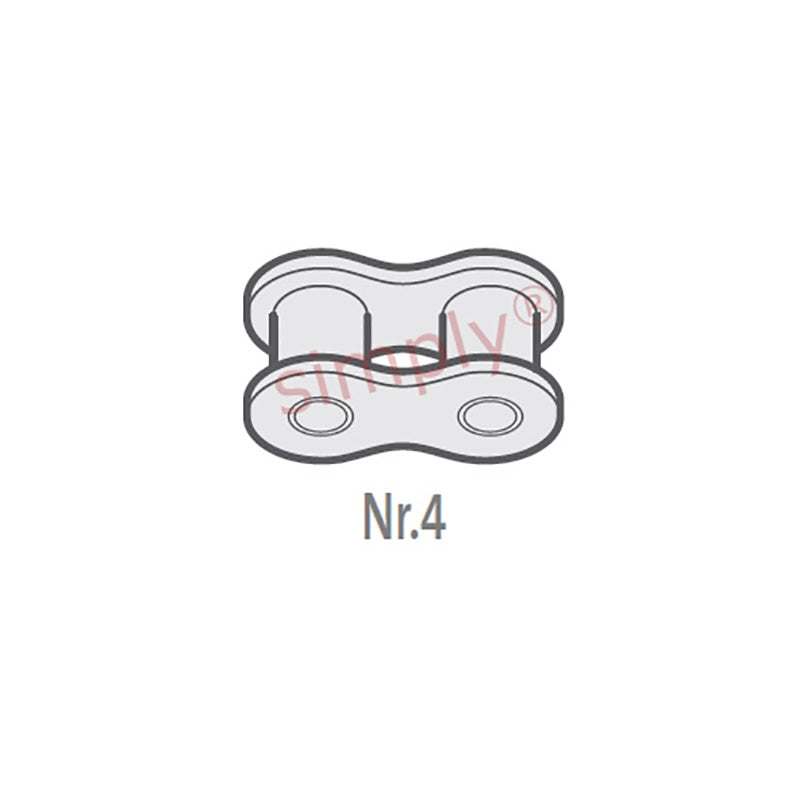

| Renold No. 4 ANSI Simplex Connecting Link: These are complete assemblies for use with all sizes and types of chain. The unit consists of two inner plates pressed on to the bushes which carry the rollers. (Inner links for use with bush chains have no rollers). |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 6.25mm |
| Roller Diameter max (C) | 7.77mm |
| Plate Height max (D) | 9.9mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 13.75mm |
| Connecting Link Extension max (J) | 1.65mm |
| ISO606 Tensile Strength min | 6700 N |
| Weight | 0.41kg/m |
