SKU: 39580/39528/Q-SKF

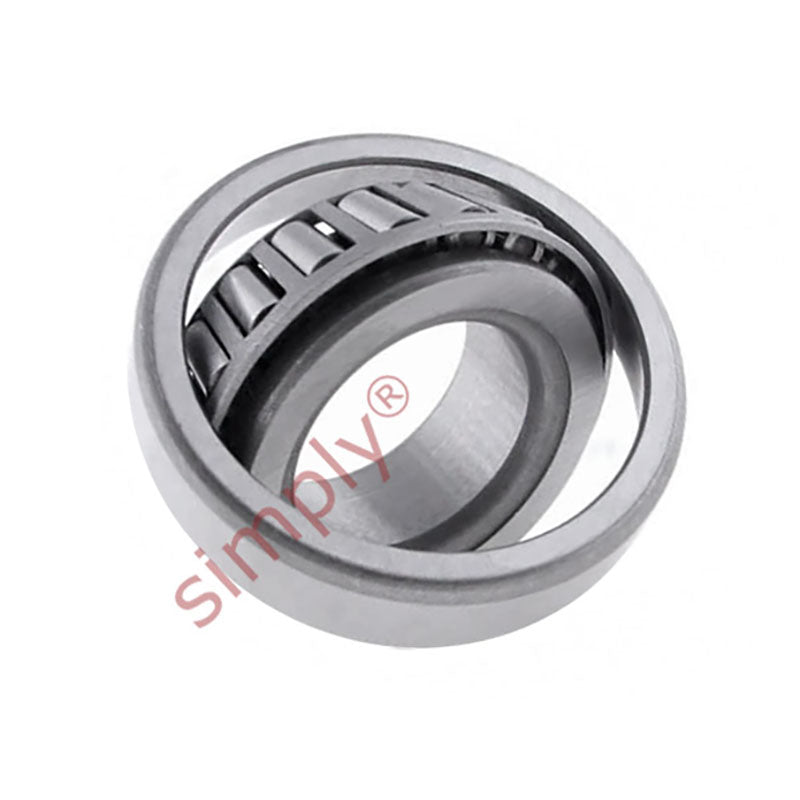

SKF 39580/39528/Q Imperial Taper Roller Bearing 2.25x4.7238x1.2894 inches

Name: SKF 39580/39528/Q Imperial Taper Roller Bearing 2.25x4.7238x1.2894 inches
Brand: SKF
SKU: 39580/39528/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 57.15mm = 2.25 (2-1/4) inch
Outside Diameter:: 119.98mm = 4.724 inch
Width:: 32.75mm = 1.289 inch
Seals / Shields:: None

Technical

d	57.15mm
D	119.985mm
T	32.75mm
Dynamic load	142 kN
Static load	204 kN
Fatigue load limit Pu	23.6 kN
Reference speed	4300 rpm
Limiting speed	6300 rpm
Weight	1.75 kg
d1	88.3mm
B	30.162mm
C	26.949mm
r1r2 min	3.5mm
r3r4 min	0.8mm
a	25mm
da max	76mm
db min	68.5mm
Da min	100mm
Da max	114mm
Db min	107mm
Ca min	5mm
Cb min	6mm
ra max	3mm
rb max	0.8mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
