SKU: 3807.B.2Z.TVH.EU

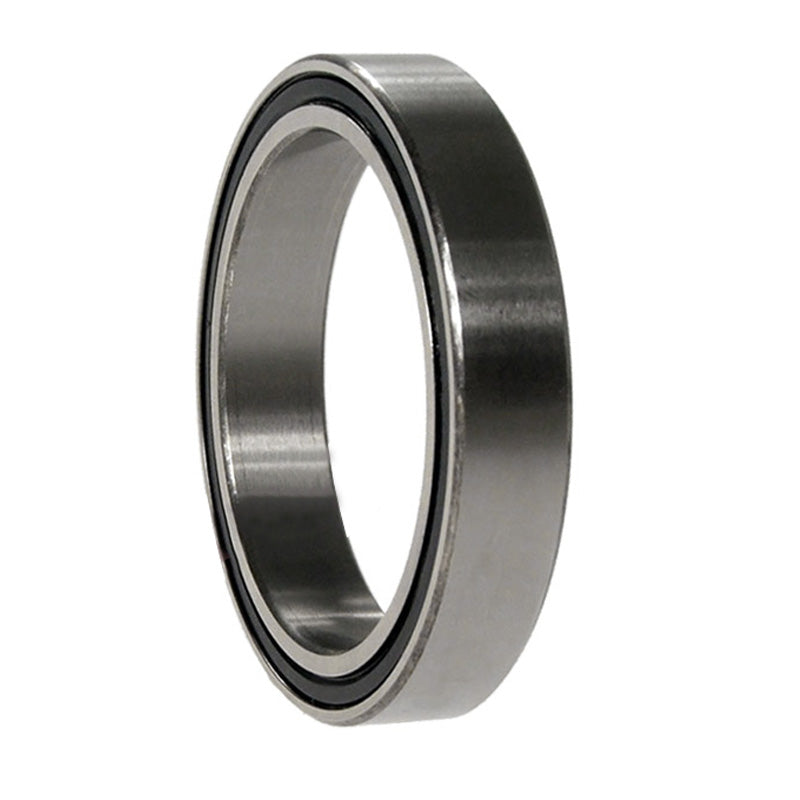

Budget 3807B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 35x47x10mm
Budget 3807B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 35x47x10mm
Equivalent to: 5807B2RSRTVH
Out of stock
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 10mm |
| a | 20mm |
| d1 max | 38.5mm |
| Da max | 45mm |
| da min | 37mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.035 kg |
| Dynamic load Cr | 6700 N |
| Static load Cor | 7000 N |
| Fatigue limit load Cur | 370 N |
| Reference speed | 6000 rpm |
| Limiting Speed | 7400 rpm |
