SKU: 33113R/Q-SKF

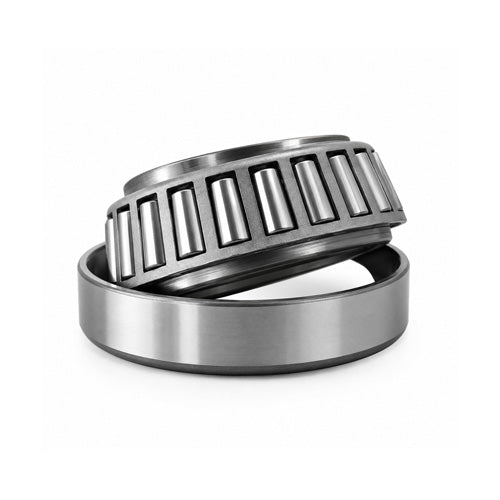

SKF 33113RQ Metric Taper Roller Bearing with Flanged Outer Ring 65x110x34mm
SKF 33113RQ Metric Taper Roller Bearing with Flanged Outer Ring 65x110x34mm
Out of stock
Share this product
Description
Description
|
SKF Taper Roller Bearings with Flanged Outer Ring: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 110mm
- Width:
- 34mm
- Seals / Shields:
- None
Technical
Technical
| d | 65mm |
|---|---|
| D | 110mm |
| T | 34mm |
| Dynamic load | 142 kN |
| Static load | 208 kN |
| Fatigue load limit Pu | 24 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.3 kg |
| d1 | 87.9mm |
| D1 | 116mm |
| B | 34mm |
| C | 26.5mm |
| C1 | 5.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| a | 26mm |
| da max | 74mm |
| db min | 72mm |
| ra max | 1mm |
| Calculation Factor e | 0.4 |
| Calculation Factor Y | 1.5 |
| Calculation Factor Y0 | 0.8 |
