SKU: 3309A-2Z/MT33-SKF

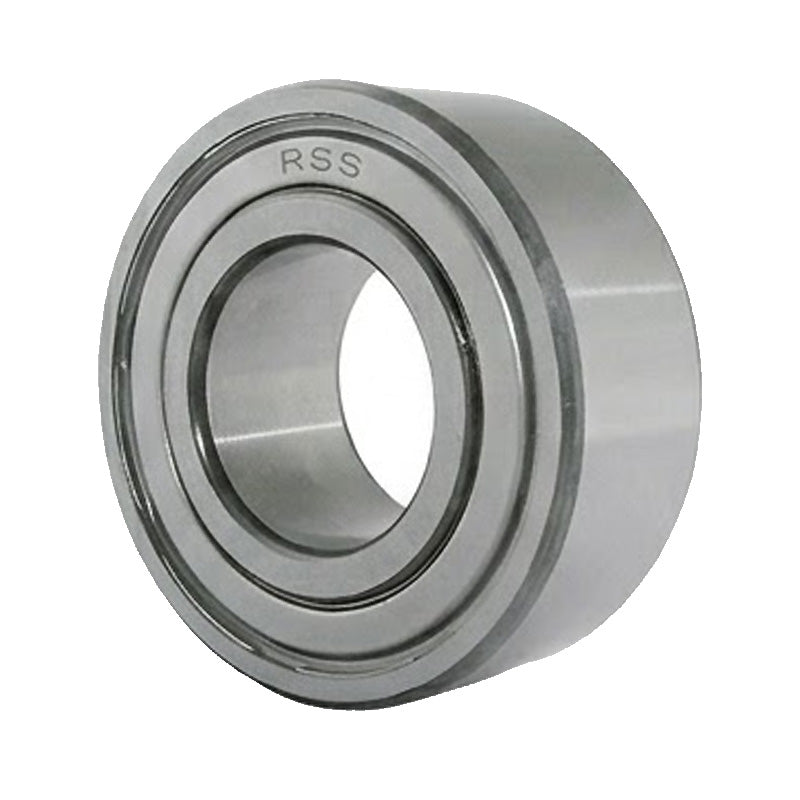

SKF 3309A2ZMT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 45x100x39.7mm

Name: SKF 3309A2ZMT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 45x100x39.7mm
Brand: SKF
SKU: 3309A-2Z/MT33-SKF
Availability: OutOfStock

Equivalent to: 5309

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 39.7mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	45mm
D	100mm
B	39.7mm
Dynamic load Cr	75 kN
Static load Cor	53 kN
Fatigue load limit Pu	2.24 kN
Max speed	6700 rpm
Weight	1.25 kg
d1	55.6mm
D1	90mm
r1r2 min	1.5mm
a	58mm
da min	54mm
da max	55.5mm
Da max	91mm
ra max	1.5mm
