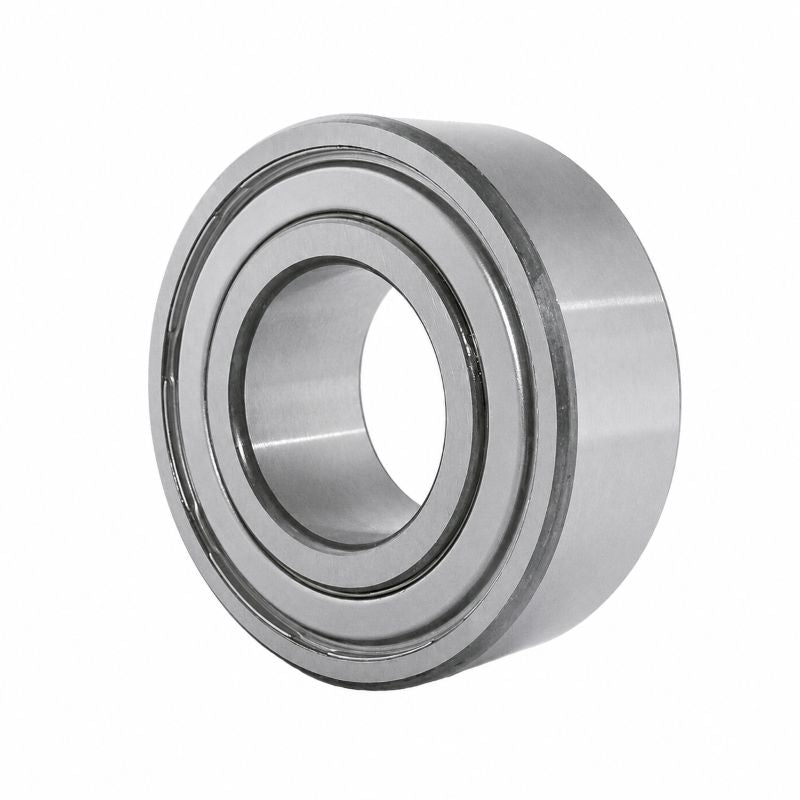

SKF 3302A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 15x42x19mm

Name: SKF 3302A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 15x42x19mm
Brand: SKF
SKU: 3302A-2ZTN9/C3MT33-SKF
Availability: OutOfStock

Equivalent to: 5302

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 42mm
Width:: 19mm
Seals / Shields:: None
Clearance:: C3

Technical

d	15mm
D	42mm
B	19mm
Dynamic load Cr	15.1 kN
Static load Cor	9.3 kN
Fatigue load limit Pu	0.4 kN
Max speed	16000 rpm
Weight	0.13 kg
d1	23.7mm
D1	35.7mm
r1r2 min	1mm
a	24mm
da min	20.6mm
da max	23.5mm
Da max	36.4mm
ra max	1mm
