SKU: 32344UTG-NTN

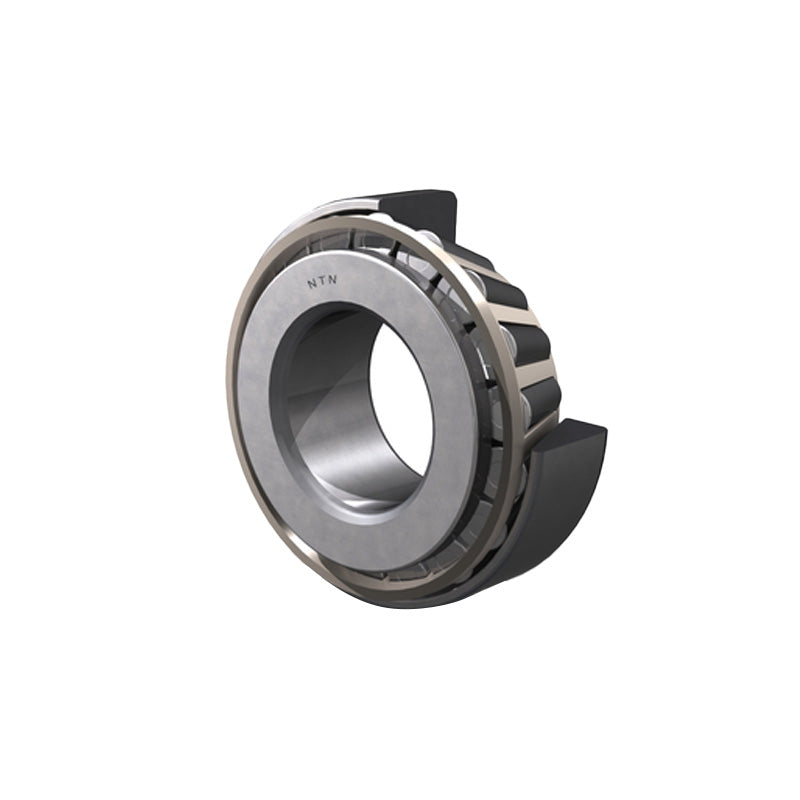

NTN 32344UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x460x154mm

NTN 32344UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x460x154mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 220mm
D 460mm
T 154mm
B 145mm
C 122mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 2590kN
Static load C<sub>or</sub> 3050kN
Fatigue Load limit C<sub>u</sub> 259kN
Allowable Speed in grease 770rpm
Allowable Speed in oil 1100rpm
--- Abutment dimensions
d<sub>a</sub> min 242mm
d<sub>b</sub> max 262.5mm
D<sub>a</sub> max 438mm
D<sub>a</sub> min 371mm
D<sub>b</sub> min 431mm
S<sub>a</sub> min 1.5mm
S<sub>b</sub> min 32mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 112mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 110kg
