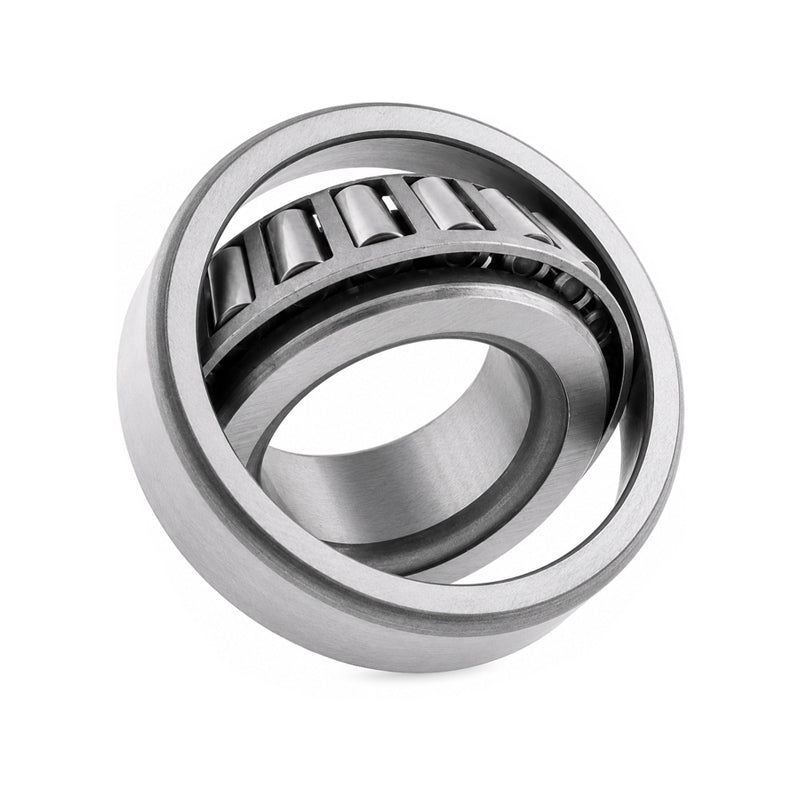

SKF 32321J2 Metric Single Row Taper Roller Bearing 105x225x81.5mm
SKF 32321J2 Metric Single Row Taper Roller Bearing 105x225x81.5mm
Out of stock
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 81.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 105mm |
|---|---|
| D | 225mm |
| T | 81.5mm |
| Dynamic load | 605 kN |
| Static load | 815 kN |
| Fatigue load limit Pu | 85 kN |
| Reference speed | 2000 rpm |
| Limiting speed | 3000 rpm |
| Weight | 14.5 kg |
| d1 | 158mm |
| B | 77mm |
| C | 63mm |
| r1r2 min | 4mm |
| r3r4 min | 3mm |
| a | 53mm |
| da max | 129mm |
| db min | 120mm |
| Da min | 185mm |
| Da max | 211mm |
| Db min | 209mm |
| Ca min | 9mm |
| Cb min | 18.5mm |
| ra max | 3mm |
| rb max | 2.5mm |
| Calculation factor e | 0.35 |
| Calculation factor Y | 1.7 |
| Calculation factor Y0 | 0.9 |
