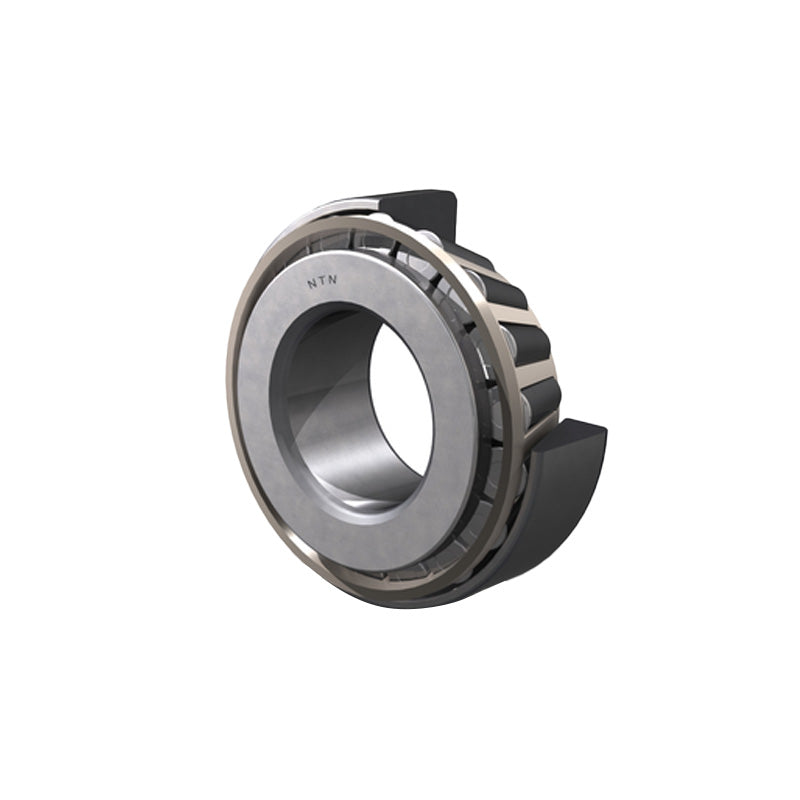

NTN 32244UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x400x114mm

NTN 32244UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x400x114mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

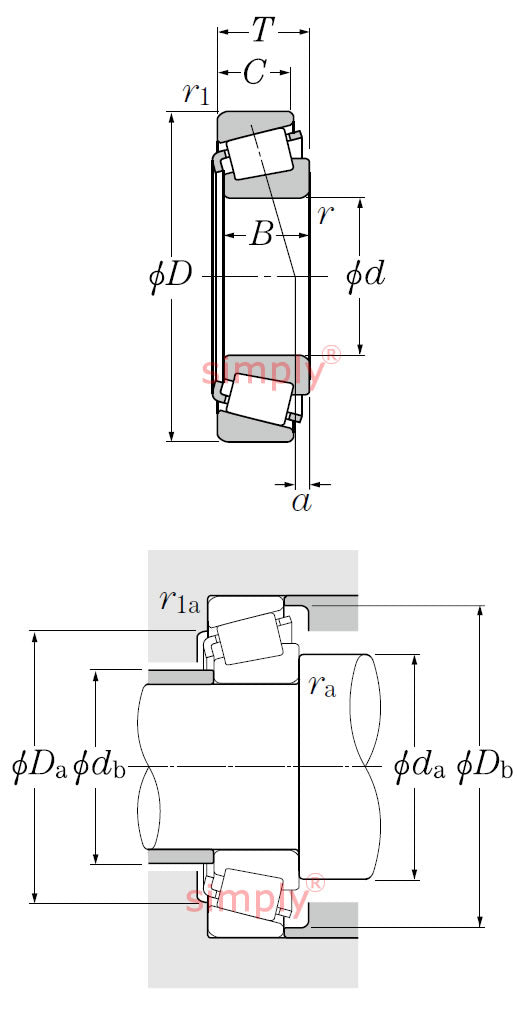

--- Bearing dimensions
d 220mm
D 400mm
T 114mm
B 108mm
C 90mm
r<sub>s</sub> min 4mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1780kN
Static load C<sub>or</sub> 2410kN
Fatigue Load limit C<sub>u</sub> 209kN
Allowable Speed in grease 840rpm
Allowable Speed in oil 1200rpm
--- Abutment dimensions
d<sub>a</sub> min 238mm
d<sub>b</sub> max 249mm
D<sub>a</sub> max 382mm
D<sub>a</sub> min 323mm
D<sub>b</sub> min 380.5mm
S<sub>a</sub> min 4.4mm
S<sub>b</sub> min 24mm
r<sub>as</sub> max 3mm
r<sub>1as</sub> max 3mm
Load center a 102mm
Constant e 0.49mm
Y<sub>2</sub> 1.23mm
Y<sub>0</sub> 0.68mm
Weight 59.8kg
