SKU: 3213A-2RS1/C3-SKF

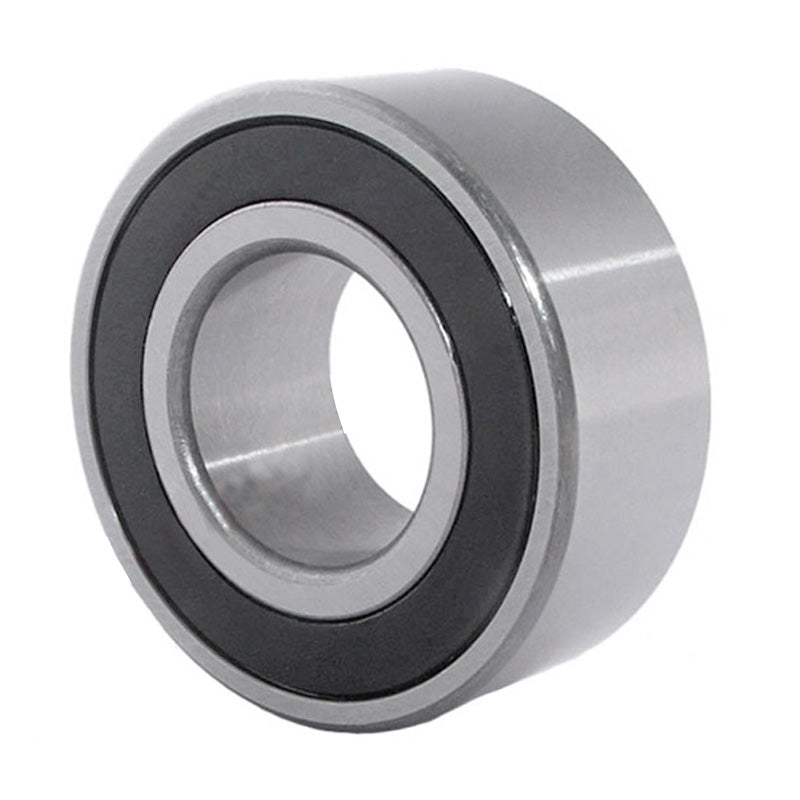

SKF 3213A2RS1C3 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 65x120x38.1mm
SKF 3213A2RS1C3 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 65x120x38.1mm
Equivalent to: 5213
Out of stock
Share this product
Description
Description
|
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 38.1mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 38.1mm |
| Dynamic load Cr | 80.6 kN |
| Static load Cor | 73.5 kN |
| Fatigue load limit Pu | 3.1 kN |
| Max speed | 3600 rpm |
| Weight | 1.75 kg |
| d1 | 76.3mm |
| D1 | 113mm |
| r1r2 min | 1.5mm |
| a | 71mm |
| da min | 74mm |
| da max | 76mm |
| Da max | 111mm |
| ra max | 1.5mm |
