SKU: 3209A-2RS1TN9/C3MT33-SKF

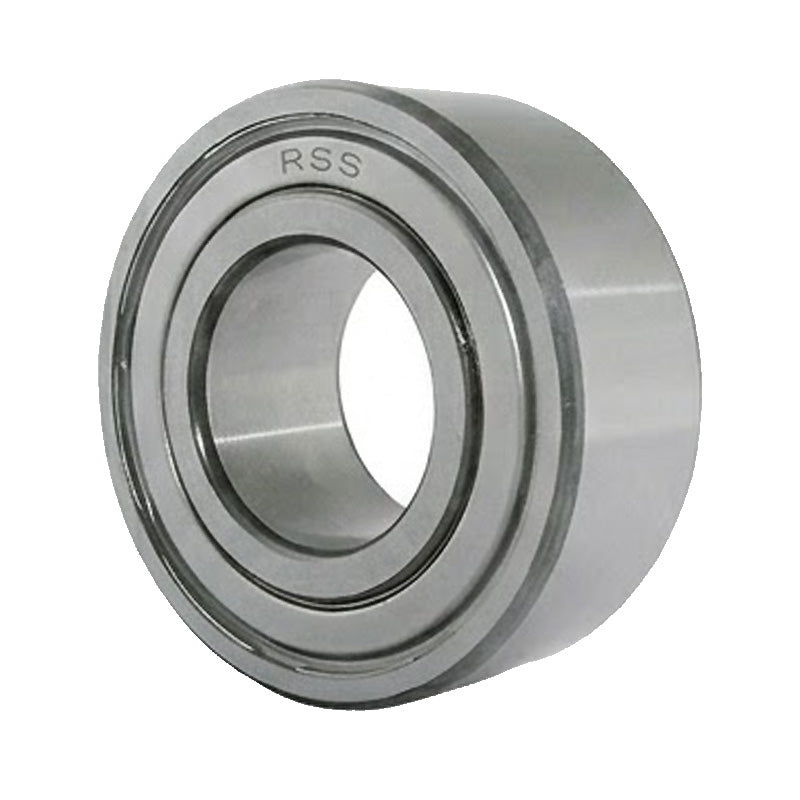

SKF 3209A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x85x30.2mm

Name: SKF 3209A2RS1TN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x85x30.2mm
Brand: SKF
SKU: 3209A-2RS1TN9/C3MT33-SKF
Availability: OutOfStock

Equivalent to: 5209

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 85mm
Width:: 30.2mm
Seals / Shields:: None
Clearance:: C3

Technical

d	45mm
D	85mm
B	30.2mm
Dynamic load Cr	51 kN
Static load Cor	39 kN
Fatigue load limit Pu	1.63 kN
Max speed	5300 rpm
Weight	0.63 kg
d1	52.8mm
D1	77.1mm
r1r2 min	1.1mm
a	49mm
da min	52mm
da max	52.5mm
Da max	78mm
ra max	1mm
