SKU: 32080UTG-NTN

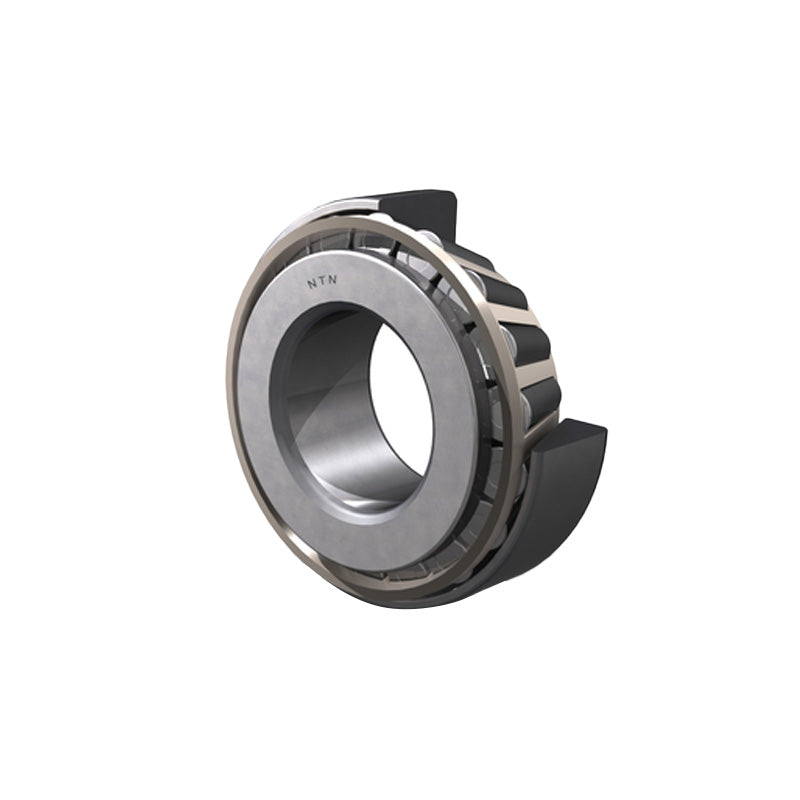

NTN 32080UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x600x125mm

NTN 32080UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x600x125mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 400mm
D 600mm
T 125mm
B 118mm
C 100mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 2790kN
Static load C<sub>or</sub> 4250kN
Fatigue Load limit C<sub>u</sub> 320kN
Allowable Speed in grease 490rpm
Allowable Speed in oil 700rpm
--- Abutment dimensions
d<sub>a</sub> min 422mm
d<sub>b</sub> max 428.5mm
D<sub>a</sub> max 578mm
D<sub>a</sub> min 526mm
D<sub>b</sub> min 575mm
S<sub>a</sub> min 5mm
S<sub>b</sub> min 25mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 119mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 110kg
