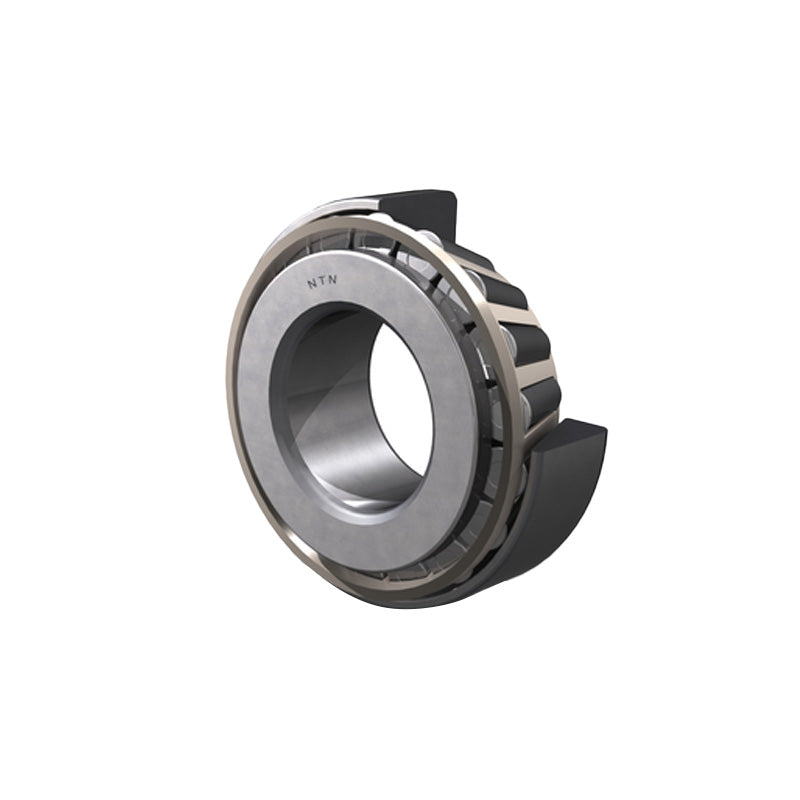

NTN 32060XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 300x460x100mm

NTN 32060XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 300x460x100mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 300mm
D 460mm
T 100mm
B 100mm
C 74mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1920kN
Static load C<sub>or</sub> 2830kN
Fatigue Load limit C<sub>u</sub> 232kN
Allowable Speed in grease 680rpm
Allowable Speed in oil 960rpm
--- Abutment dimensions
ISO Dimension series 4GD
d<sub>a</sub> min 322mm
d<sub>b</sub> max 324.5mm
D<sub>a</sub> max 442mm
D<sub>a</sub> min 398.5mm
D<sub>b</sub> min 441.5mm
S<sub>a</sub> min 15mm
S<sub>b</sub> min 26mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 3mm
Load center a 98mm
Constant e 0.43mm
Y<sub>2</sub> 1.38mm
Y<sub>0</sub> 0.76mm
Weight 57.2kg
