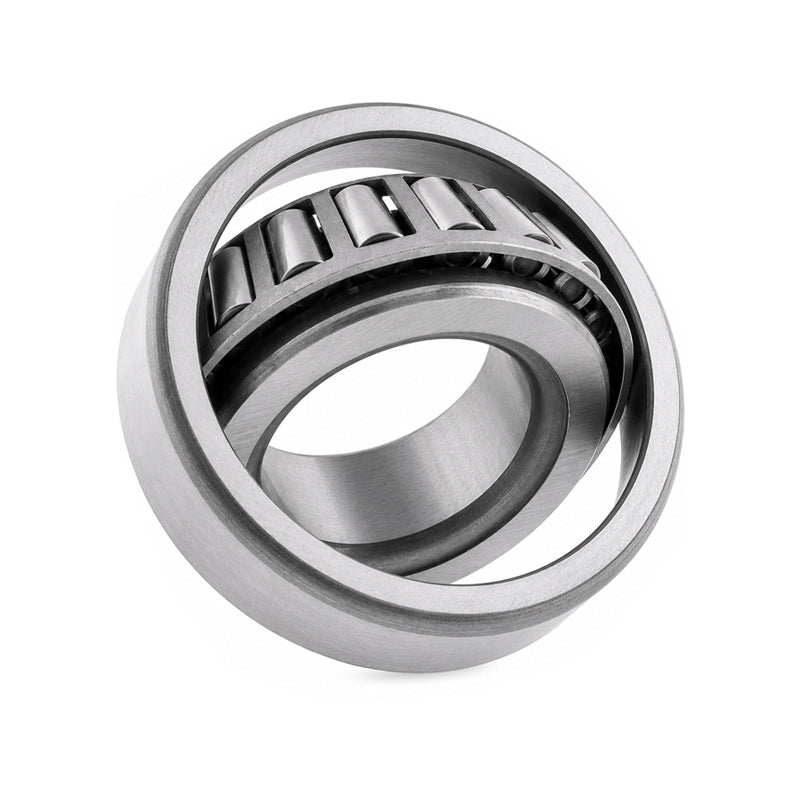

FAG 32032X Metric Taper Roller Bearing 160x240x51mm
FAG 32032X Metric Taper Roller Bearing 160x240x51mm
Out of stock
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 240mm
- Width:
- 51mm
- Seals / Shields:
- None
Technical
Technical
| d | 160mm |
|---|---|
| D | 240mm |
| T | 51mm |
| Dynamic load | 429 kN |
| Static load | 780 kN |
| Fatigue load limit Pu | 78 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 2400 rpm |
| Mass | 7.75 kg |
| d1 | 200mm |
| B | 51mm |
| C | 38mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 52mm |
| da max | 175mm |
| db min | 174mm |
| Da min | 213mm |
| Da max | 228mm |
| Db min | 231mm |
| Ca min | 8mm |
| Cb min | 13mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.46 |
| Y | 1.3 |
| Y0 | 0.7 |
