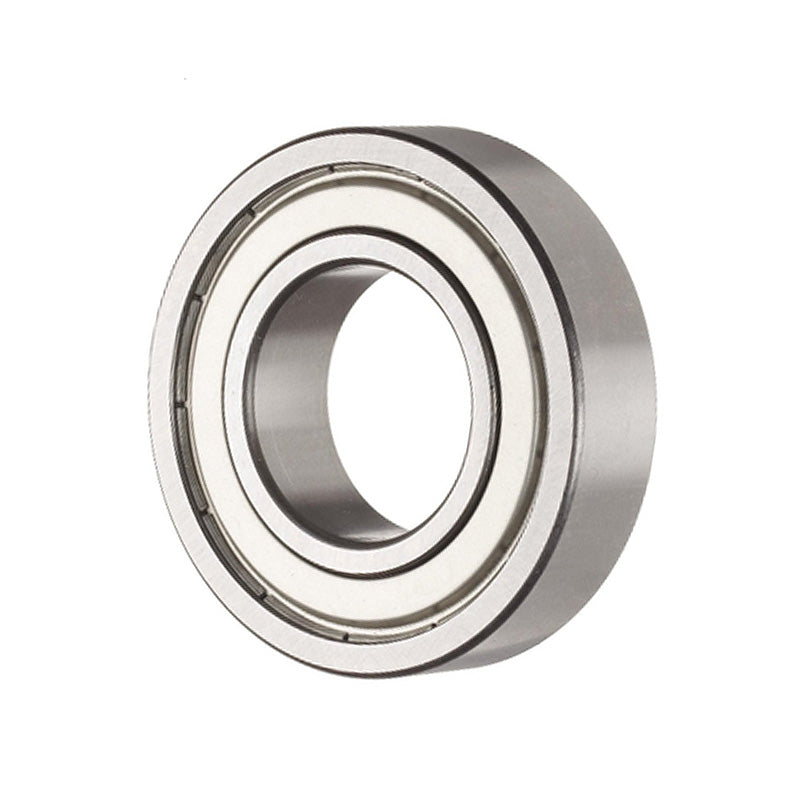

SKF 316Z Metal Shielded Filling Slot Ball Bearing 80x170x39mm
SKF 316Z Metal Shielded Filling Slot Ball Bearing 80x170x39mm
Out of stock
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 138 kN |
| Static load Co | 129 kN |
| Fatigue load limit Pu | 4.9 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 3.95 kg |
| d1 | 106mm |
| D2 | 147mm |
| r1r2 min | 2.1mm |
| da min | 91mm |
| Da max | 159mm |
| ra max | 2mm |
