SKU: 30328UUTG-NTN

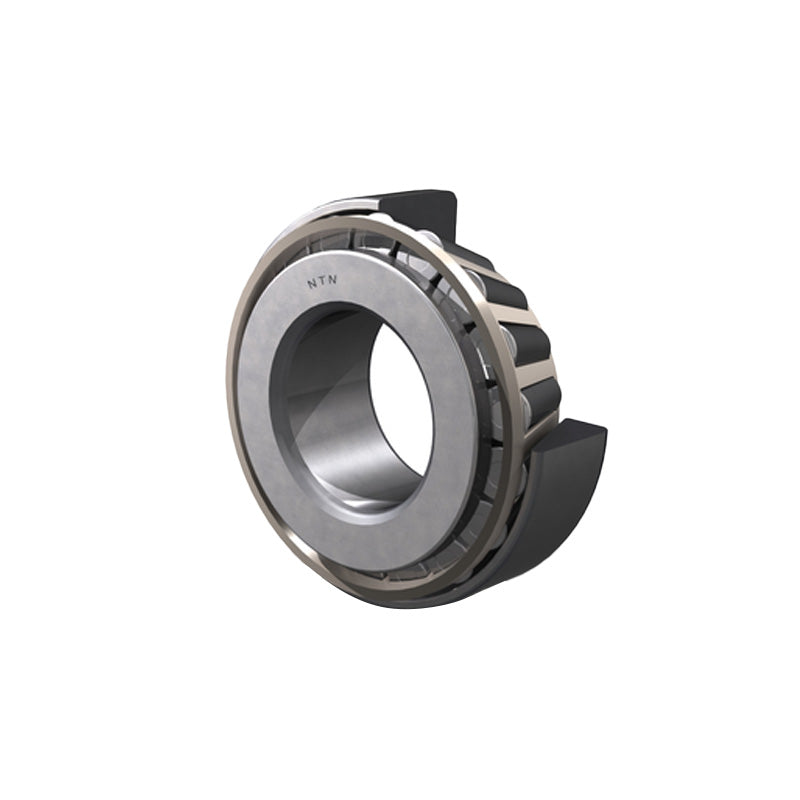

NTN 30328UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 140x300x67.75mm

NTN 30328UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 140x300x67.75mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 140mm
D 300mm
T 67.75mm
B 62mm
C 53mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 945kN
Static load C<sub>or</sub> 950kN
Fatigue Load limit C<sub>u</sub> 91.5kN
Allowable Speed in grease 1300rpm
Allowable Speed in oil 1800rpm
--- Abutment dimensions
ISO Dimension series 2GB
d<sub>a</sub> min 162mm
d<sub>b</sub> max 175.5mm
D<sub>a</sub> max 282mm
D<sub>a</sub> min 252mm
D<sub>b</sub> min 275.5mm
S<sub>a</sub> min 9mm
S<sub>b</sub> min 14.5mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 3mm
Load center a 56.5mm
Constant e 0.35mm
Y<sub>2</sub> 1.74mm
Y<sub>0</sub> 0.96mm
Weight 21.1kg
