SKU: 30252UTG-NTN

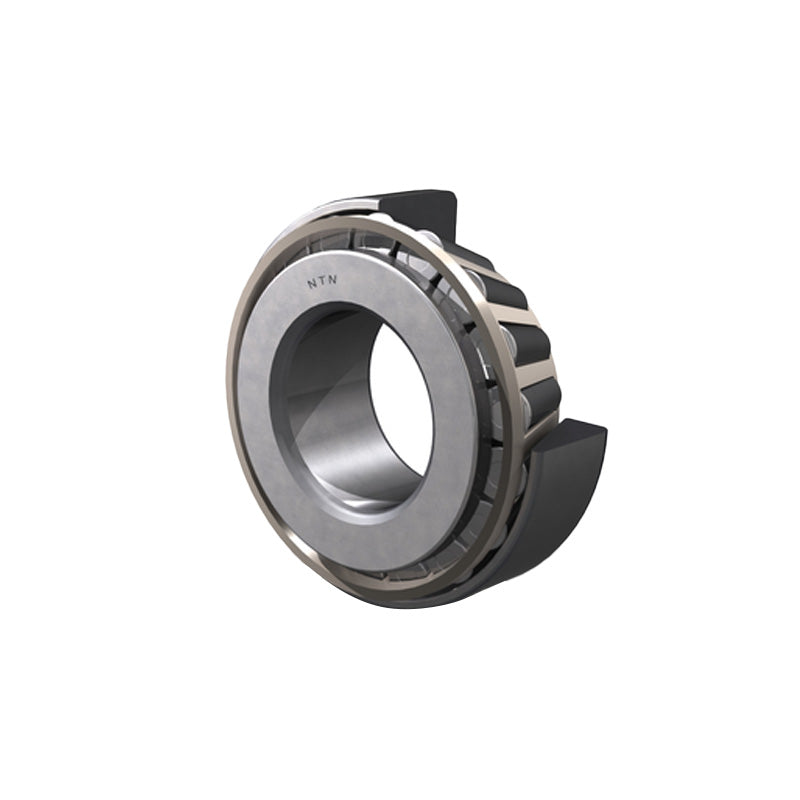

NTN 30252UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 260x480x89mm

NTN 30252UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 260x480x89mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 260mm
D 480mm
T 89mm
B 80mm
C 67mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1500kN
Static load C<sub>or</sub> 1810kN
Fatigue Load limit C<sub>u</sub> 149kN
Allowable Speed in grease 690rpm
Allowable Speed in oil 990rpm
--- Abutment dimensions
d<sub>a</sub> min 282mm
d<sub>b</sub> max 307mm
D<sub>a</sub> max 458mm
D<sub>a</sub> min 396mm
D<sub>b</sub> min 438.5mm
S<sub>a</sub> min 4.2mm
S<sub>b</sub> min 22mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 99.5mm
Constant e 0.49mm
Y<sub>2</sub> 1.23mm
Y<sub>0</sub> 0.68mm
Weight 63.4kg
