SKU: 30238UUTG-NTN

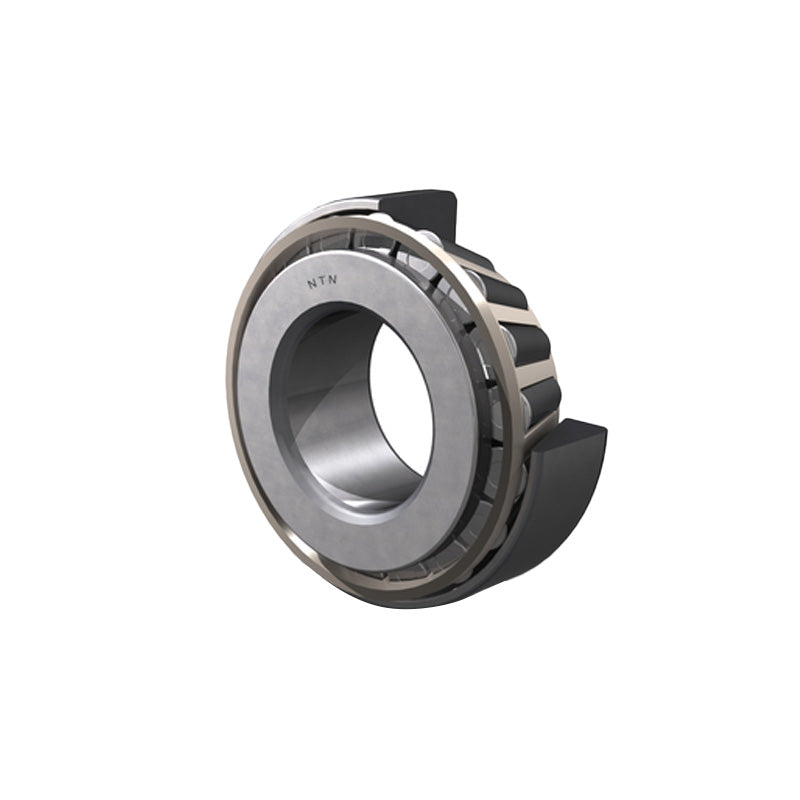

NTN 30238UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x340x60mm

NTN 30238UUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x340x60mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 190mm
D 340mm
T 60mm
B 55mm
C 46mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 920kN
Static load C<sub>or</sub> 1000kN
Fatigue Load limit C<sub>u</sub> 91.5kN
Allowable Speed in grease 1000rpm
Allowable Speed in oil 1400rpm
--- Abutment dimensions
ISO Dimension series 4GB
d<sub>a</sub> min 212mm
d<sub>b</sub> max 223mm
D<sub>a</sub> max 322mm
D<sub>a</sub> min 293mm
D<sub>b</sub> min 320.5mm
S<sub>a</sub> min 9mm
S<sub>b</sub> min 14mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 3mm
Load center a 64mm
Constant e 0.44mm
Y<sub>2</sub> 1.38mm
Y<sub>0</sub> 0.76mm
Weight 21.5kg
