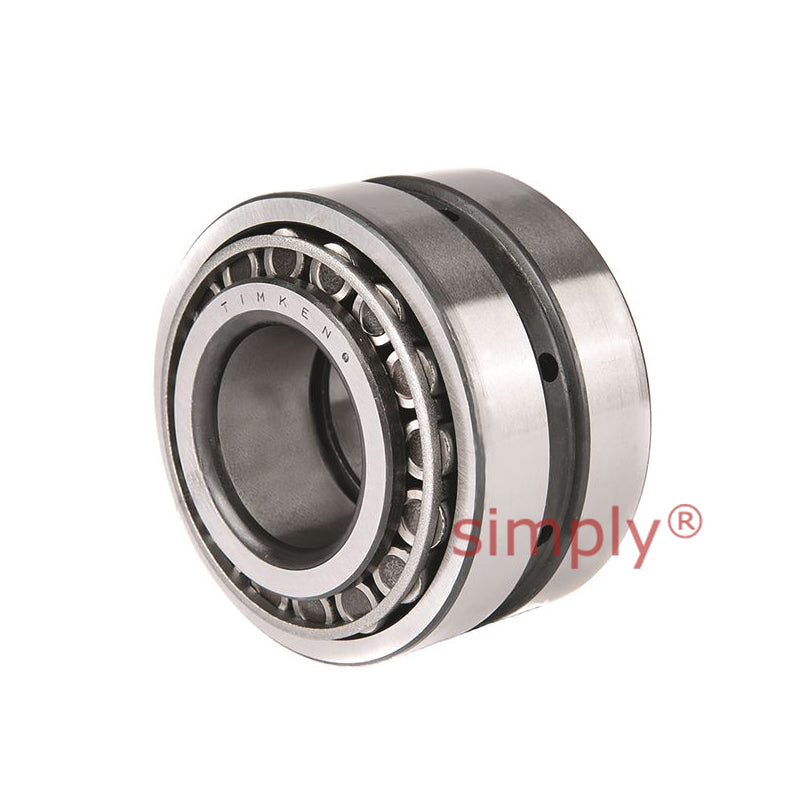

Timken 29688/29622D/X1S29688 TDO Double Outer Race Taper Roller Bearing 2.9062x4.4995x2.3125x1.8125 inch
Timken 29688/29622D/X1S29688 TDO Double Outer Race Taper Roller Bearing 2.9062x4.4995x2.3125x1.8125 inch
Out of stock
Description
Description

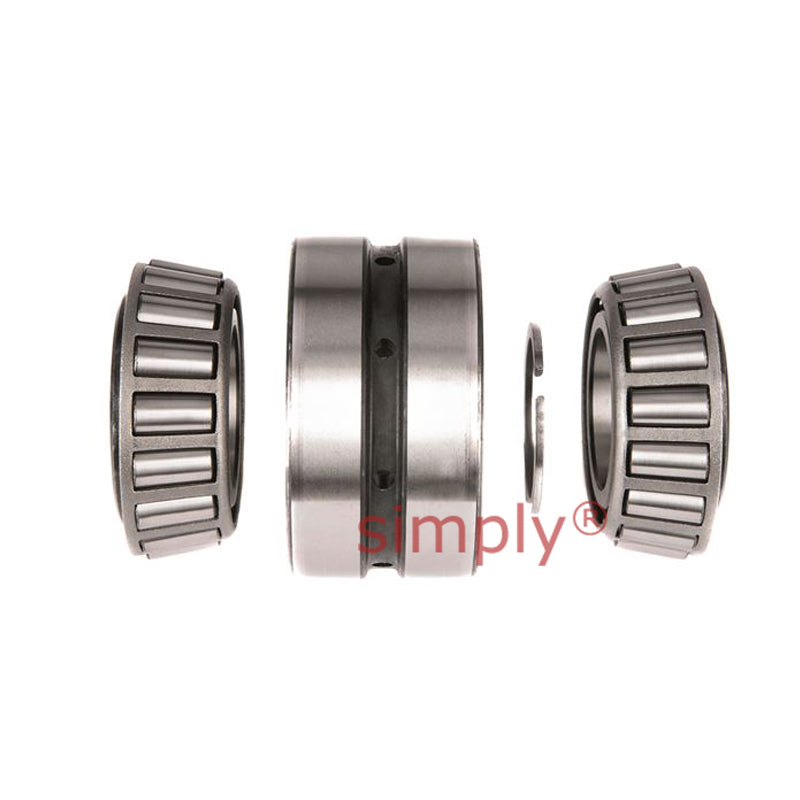

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 73.82mm = 2.9062 inch
- Outside Diameter:
- 114.29mm = 4.4995 inch
- Width:
- 58.74mm = 2.3125 inch
Technical
Technical
| d | 73.817mm = 2.9062 inch |
|---|---|
| D | 114.287mm = 4.4995 inch |
| T | 58.738mm = 2.3125 inch |
| C | 46.038mm = 1.8125 inch |
| Dynamic (1) C1 | 178000N |
| Factors (5) e | 0.49 |
| Factors (5) Y1 | 1.38 |
| Factors (5) Y2 | 2.06 |
| Dynamic (2) C90 | 26500N |
| Dynamic (2) Ca90 | 22100N |
| Dynamic (2) C90(2) | 46200N |
| Factors (5) K | 1.2 |
| Shaft max shaft fillet radius R(3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter db | 83mm = 3.27 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 109mm = 4.29 inch |
| G1 | 77.7 |
| G2 | 43.3 |
| Cg | 0.117 |
