SKU: 25880/25820/Q-SKF

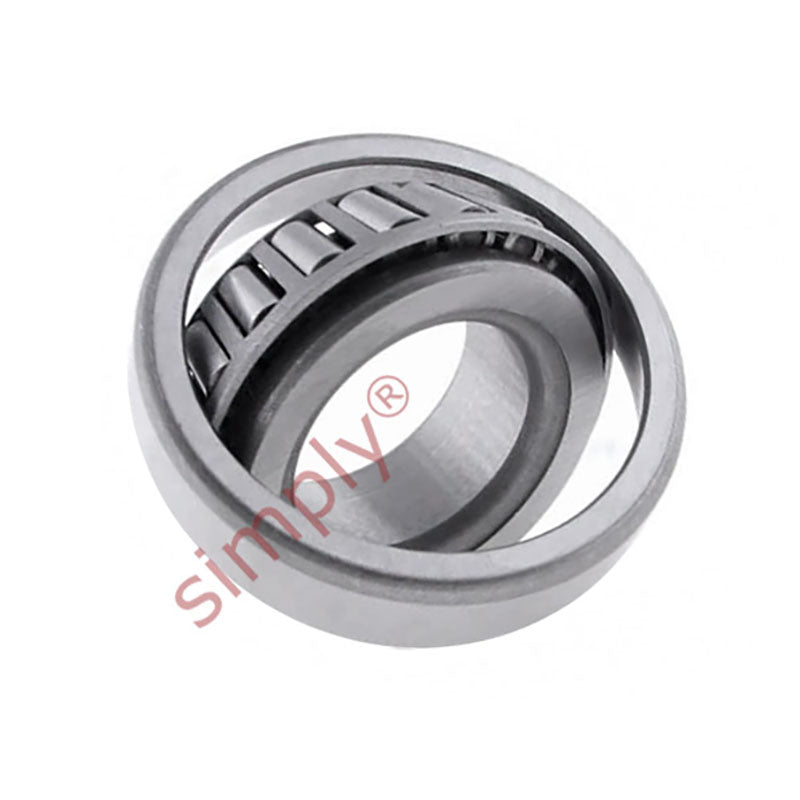

SKF 25880/25820/Q Imperial Taper Roller Bearing 1.4365x2.875x0.9375 inches

Name: SKF 25880/25820/Q Imperial Taper Roller Bearing 1.4365x2.875x0.9375 inches
Brand: SKF
SKU: 25880/25820/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 36.51mm = 1.437 (1-7/16) inch
Outside Diameter:: 73.03mm = 2.875 (2-7/8) inch
Width:: 23.81mm = 0.937 (15/16) inch
Seals / Shields:: None

Technical

d	36.487mm
D	73.025mm
T	23.812mm
Dynamic load	72.1 kN
Static load	88 kN
Fatigue load limit Pu	9.8 kN
Reference speed	7000 rpm
Limiting speed	10000 rpm
Weight	0.45 kg
d1	52.5mm
B	24.608mm
C	19.05mm
r1r2 min	1.5mm
r3r4 min	2.3mm
a	15mm
da max	44mm
db min	43.5mm
Da min	62mm
Da max	66.5mm
Db min	67mm
Ca min	5mm
Cb min	4.5mm
ra max	1.5mm
rb max	2mm
Calculation factor e	0.3
Calculation factor Y	2
Calculation factor Y0	1.1
