SKU: 249/1180CAK30F/W33-SKF

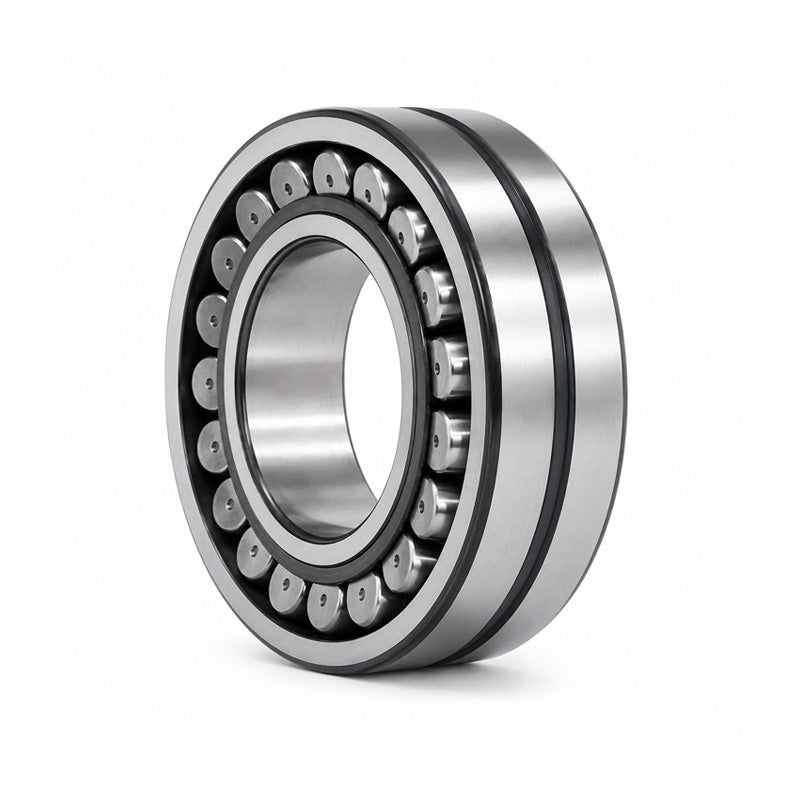

SKF 2491180CAK30FW33 Spherical Roller Bearing with Taper Bore with Brass Cage 1180x1540x355mm
SKF 2491180CAK30FW33 Spherical Roller Bearing with Taper Bore with Brass Cage 1180x1540x355mm
Equivalent to: 249/1180K
Out of stock
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 1180mm
- Outside Diameter:
- 1540mm
- Width:
- 355mm
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 1180mm |
| D | 1540mm |
| B | 355mm |
| D1 | 1422mm |
| d2 | 1303mm |
| r1r2 min | 7.5mm |
| b | 22.3mm |
| K | 12mm |
| da min | 1208mm |
| Da max | 1512mm |
| ra max | 6mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 13600 kN |
| Static load Co | 40500 kN |
| Fatigue load limit Pu | 2160 kN |
| Reference speed | 130 rpm |
| Limiting speed | 240 rpm |
| Weight | 1800 kg |
| --- | Factors |
| Calculation factor e | 0.2 |
| Calculation factor Y1 | 3.4 |
| Calculation factor Y2 | 5 |
| Calculation factor Y0 | 3.2 |
