SKU: 24176-B-C3-FAG

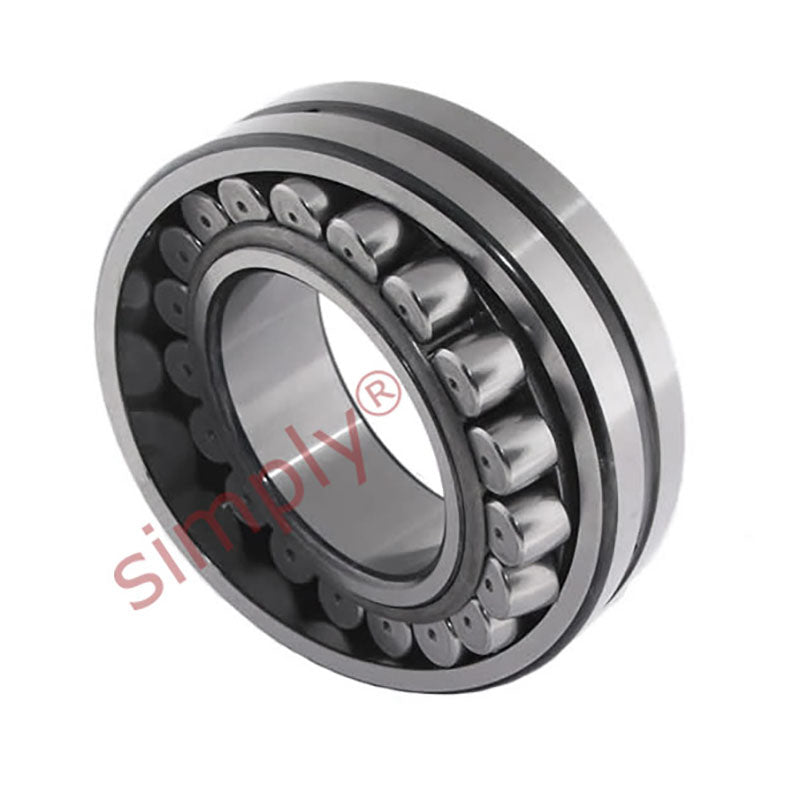

FAG 24176BC3 Spherical Roller Bearing with Cylindrical Bore 380x620x243mm
FAG 24176BC3 Spherical Roller Bearing with Cylindrical Bore 380x620x243mm
Out of stock
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 380mm
- Outside Diameter:
- 620mm
- Width:
- 243mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 380mm |
| D | 620mm |
| B | 243mm |
| r min. | 5mm |
| D1 | 525.8mm |
| ds | 9.5mm |
| ns | 17.7mm |
| da min. | 400mm |
| Da max. | 600mm |
| ra max. | 4mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 770000 N |
| Limiting speed | 700 rpm |
| Reference speed | 330 rpm |
| Dynamic Load Rating | 4650000 N |
| Static Load Rating | 9500000 N |
| Mass | 279kg |
| --- | Factors |
| e | 0.39 |
| Y1 | 1.71 |
| Y2 | 2.54 |
| Y0 | 1.67 |
