SKU: 24112/24262D-TIM

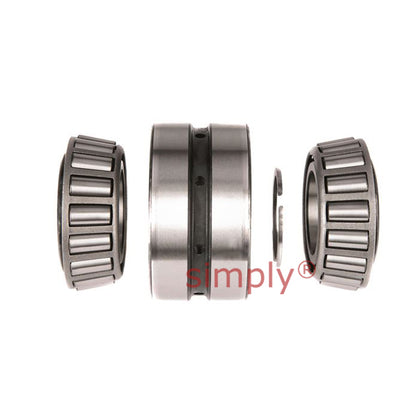

Timken 24112/24262D TDO Double Outer Race Taper Roller Bearing 1.125x2.615x1.7501x1.5 inch
Timken 24112/24262D TDO Double Outer Race Taper Roller Bearing 1.125x2.615x1.7501x1.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 28.58mm = 1.125 inch
- Outside Diameter:
- 66.42mm = 2.615 inch
- Width:
- 44.45mm = 1.7501 inch
Technical
Technical
| d | 28.575mm = 1.125 inch |
|---|---|
| D | 66.421mm = 2.615 inch |
| T | 44.453mm = 1.7501 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 90100N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.99 |
| Factors (5) Y2 | 2.96 |
| Dynamic (2) C90 | 13400N |
| Dynamic (2) Ca90 | 7790N |
| Dynamic (2) C90(2) | 23300N |
| Factors (5) K | 1.72 |
| Shaft max shaft fillet radius R(3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter db | 36mm = 1.42 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 61mm = 2.4 inch |
| G1 | 14 |
| G2 | 8.28 |
| Cg | 0.0589 |
