SKU: 239/900CAK/W33-SKF

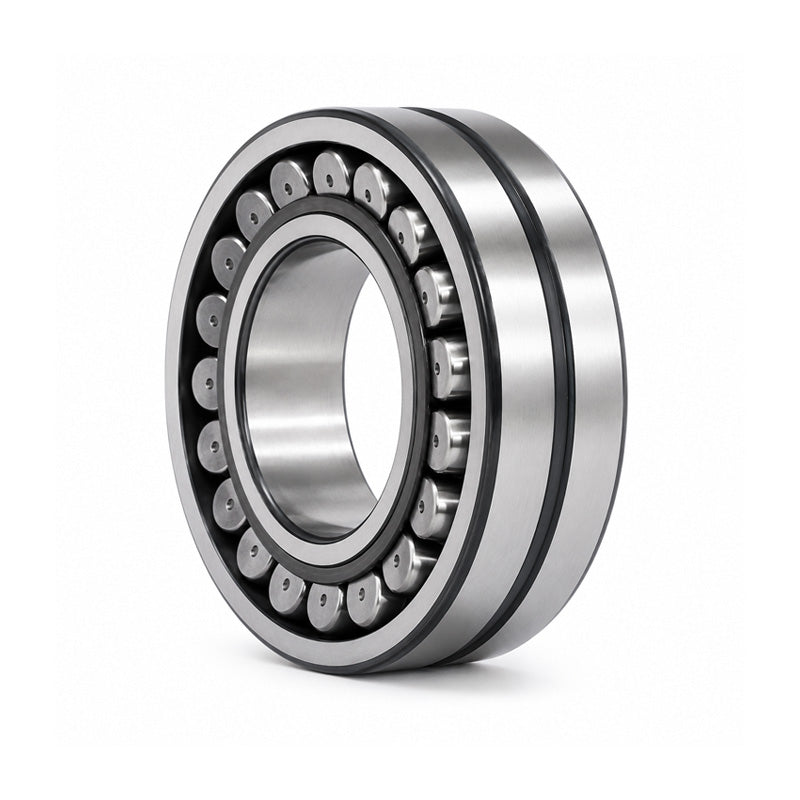

SKF 239900CAKW33 Spherical Roller Bearing with Taper Bore with Brass Cage 900x1180x206mm

Name: SKF 239900CAKW33 Spherical Roller Bearing with Taper Bore with Brass Cage 900x1180x206mm
Brand: SKF
SKU: 239/900CAK/W33-SKF
Availability: OutOfStock

Equivalent to: 239/900K

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Brand / Quality:: SKF - High Quality
Inside Diameter:: 900mm
Outside Diameter:: 1180mm
Width:: 206mm
Clearance:: * Standard

Technical

---	Dimensions
d	900mm
D	1180mm
B	206mm
D1	1101mm
d2	989mm
r1r2 min	6mm
b	22.3mm
K	12mm
da min	923mm
Da max	1157mm
ra max	5mm
---	Speeds, Loads and Weights
Dynamic load C	7500 kN
Static load Co	17000 kN
Fatigue load limit Pu	1020 kN
Reference speed	260 rpm
Limiting speed	450 rpm
Weight	605 kg
---	Factors
Calculation factor e	0.15
Calculation factor Y1	4.5
Calculation factor Y2	6.7
Calculation factor Y0	4.5
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=OH39900H+sleeve>OH39900H</a>
