SKU: 23122-2CS2/VT143-SKF

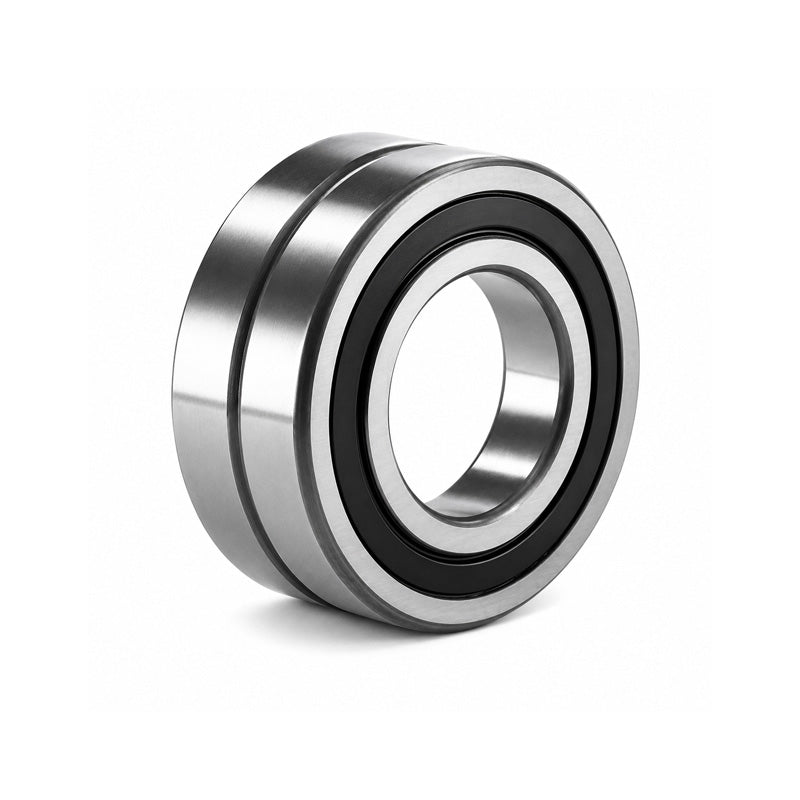

SKF 231222CS2VT143 Sealed Spherical Roller Bearing with Cylindrical Bore 110x180x56mm
SKF 231222CS2VT143 Sealed Spherical Roller Bearing with Cylindrical Bore 110x180x56mm
Equivalent to: 231222RS2/VT143
Out of stock
Share this product
Description
Description
|
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 180mm
- Width:
- 56mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 110mm |
| D | 180mm |
| B | 56mm |
| D1 | 166mm |
| d2 | 122mm |
| r1r2 min | 2mm |
| b | 8.3mm |
| K | 4.5mm |
| da min | 121mm |
| da max | 122mm |
| Da max | 169mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 430 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 61 kN |
| Limiting speed | 800 rpm |
| Weight | 5.55 kg |
| --- | Factors |
| Calculation factor e | 0.27 |
| Calculation factor Y1 | 2.5 |
| Calculation factor Y2 | 3.7 |
| Calculation factor Y0 | 2.5 |
