SKU: 2212E-2RS1KTN9-SKF

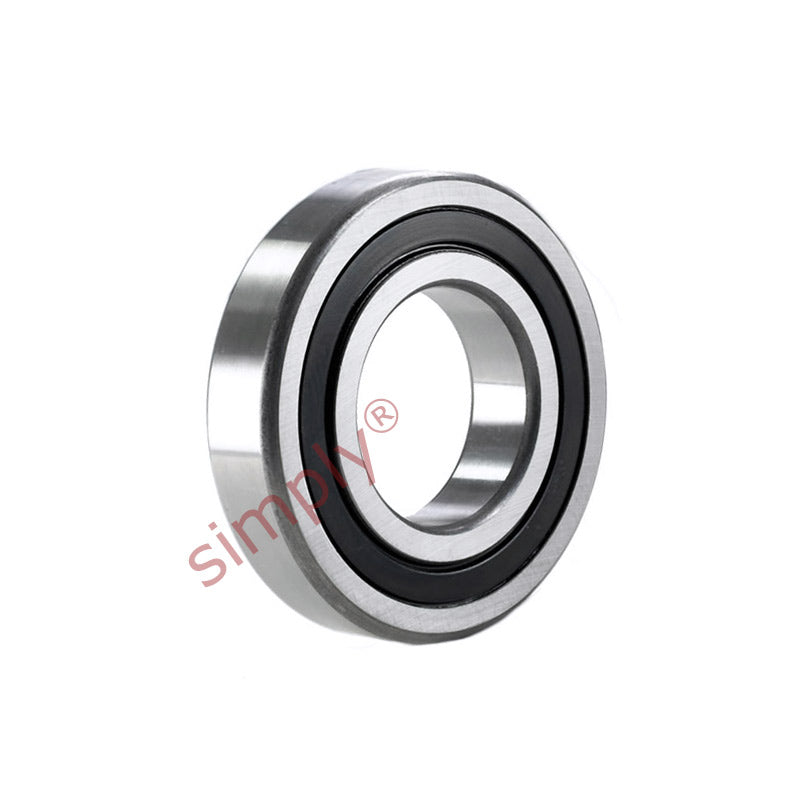

SKF 2212E2RS1KTN9 Taper Bore Rubber Sealed Self Aligning Ball Bearing for use with Adaptor Sleeve 60x110x28mm
SKF 2212E2RS1KTN9 Taper Bore Rubber Sealed Self Aligning Ball Bearing for use with Adaptor Sleeve 60x110x28mm
Equivalent to: 2212E-2RS1EKTN9
Out of stock
Description
Description
|
SKF Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 28mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 28mm |
| Dynamic load C | 31.2 kN |
| Static load Co | 12.2 kN |
| Fatigue load limit Pu | 0.62 kN |
| Limiting speed | 3800 rpm |
| Weight | 1.4 kg |
| d3 | 80mm |
| D1 | 97mm |
| B1 | 47mm |
| B2 | 13.5mm |
| r1r2 min | 1.5mm |
| da max | 73mm |
| db min | 65mm |
| Da max | 101mm |
| Ba min | 9mm |
| ra max | 1.5mm |
| Calculation factor e | 0.19 |
| Calculation factor Y0 | 3.6 |
| Calculation factor Y1 | 3.3 |
| Calculation factor Y2 | 5.1 |
