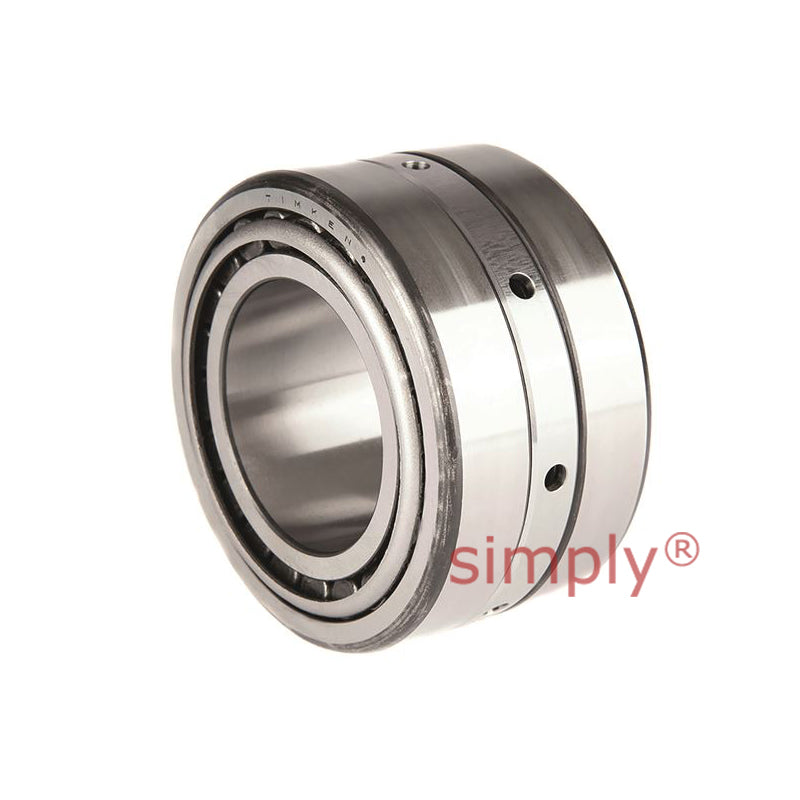

Timken 17116D/17244 TDI Double Inner Race Taper Roller Bearing 1.1875x2.4409x1.3306x1.375 inch
Timken 17116D/17244 TDI Double Inner Race Taper Roller Bearing 1.1875x2.4409x1.3306x1.375 inch
Out of stock
Description
Description

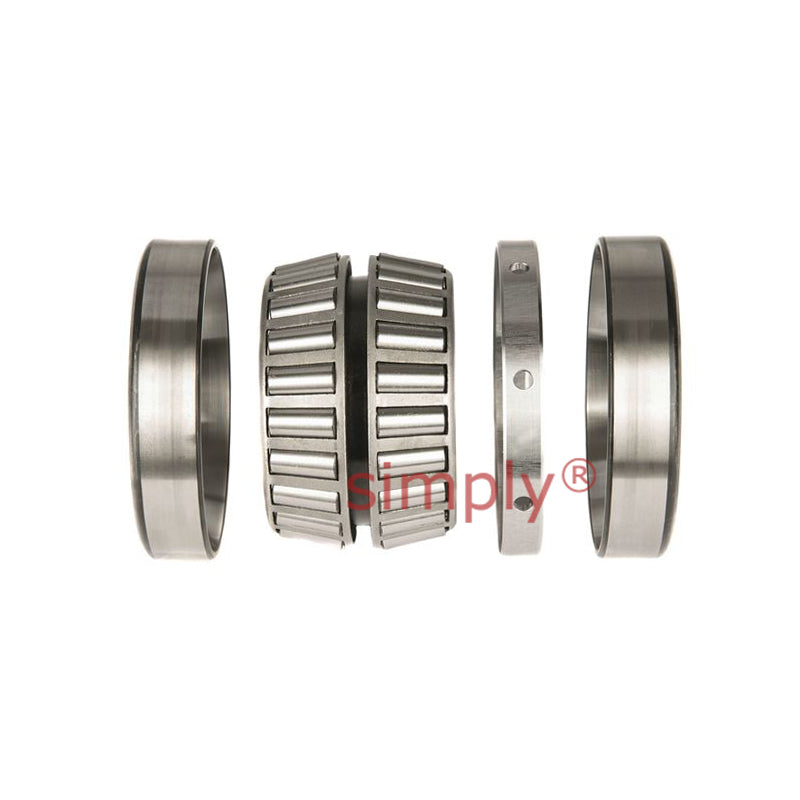

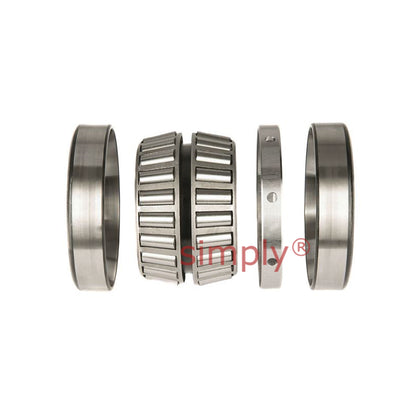

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm = 2.441 inch
- Width:
- 33.8mm = 1.331 inch
Technical
Technical
| d | 30.162mm = 1.1875 inch |
|---|---|
| D | 62mm = 2.4409 inch |
| T | 33.797mm = 1.3306 inch |
| C | 34.925mm = 1.375 inch |
| Dynamic (1) C1 | 69700N |
| Factors (5) e | 0.38 |
| Factors (5) Y2 | 2.63 |
| Dynamic (2) C90 | 10400N |
| Dynamic (2) Ca90 | 6800N |
| Dynamic (2) C90(2) | 18100N |
| Factors (5) K | 1.53 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 35.5mm = 1.4 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 54mm = 2.13 inch |
| G1 | 11.8 |
| G2 | 7.49 |
| Cg | 0.0579 |
