SKU: 160098X/160161XP-GAMET

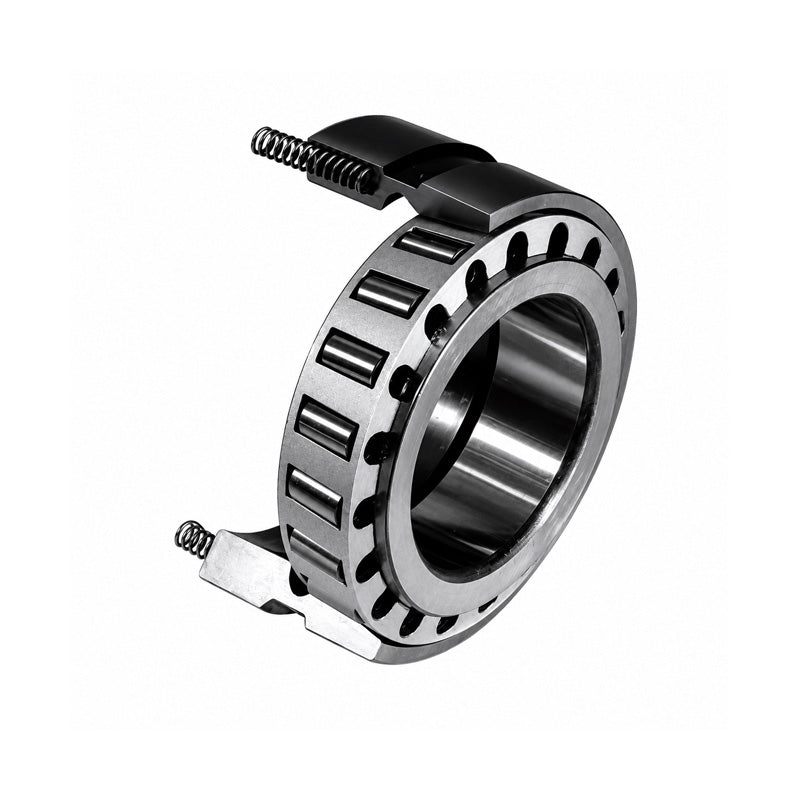

Gamet 160098X/160161XP Super Precision Tapered Roller Bearing Integral Spring Carrier Cup Type 98.425x161.925x42mm - Allow 7-10 Days
Gamet 160098X/160161XP Super Precision Tapered Roller Bearing Integral Spring Carrier Cup Type 98.425x161.925x42mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Integral Spring Carrier Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, this single row bearing has an extended outer ring, housing and a number of springs. It is mounted in conjuction with either a single or double row bearing. As the outer race is free to slide in the housing, the spring force ensures that a constant bearing system preload is maintained despite thermal expansion due to varying temperature conditions. Benefits: Cost-effective, high quality bearing materials, constant pre-load. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 98.425mm
- Outside Diameter:
- 161.925mm
- Width:
- 42mm
Technical
Technical
| d | 98.425mm |
|---|---|
| D | 161.925mm |
| T | 83.90mm |
| C | 78.50mm |
| B | 42.00mm |
| F | 8.10mm |
| da | 114mm |
| L | 9mm |
| M | 123.00mm |
| P | 22.92 daN |
| Max permissible pre load | 550 daN |
| Hole for springs diameter | 10.00mm |
| Hole for springs depth | 23.85mm |
| r | 0.80mm |
| R | 2.50mm |
| S | 41.90mm |
| Radial static stiffness | 115 daN/µ |
| Radial basic rating | 3700 daN |
| Axial basic rating | 1785 daN |
| Max speed | 4300 rpm |
| Weight | 4.300kg |
| Cone | 160098X |
| Cup | 160161XP |
