SKU: 16-B-26-06-ROLL-REN

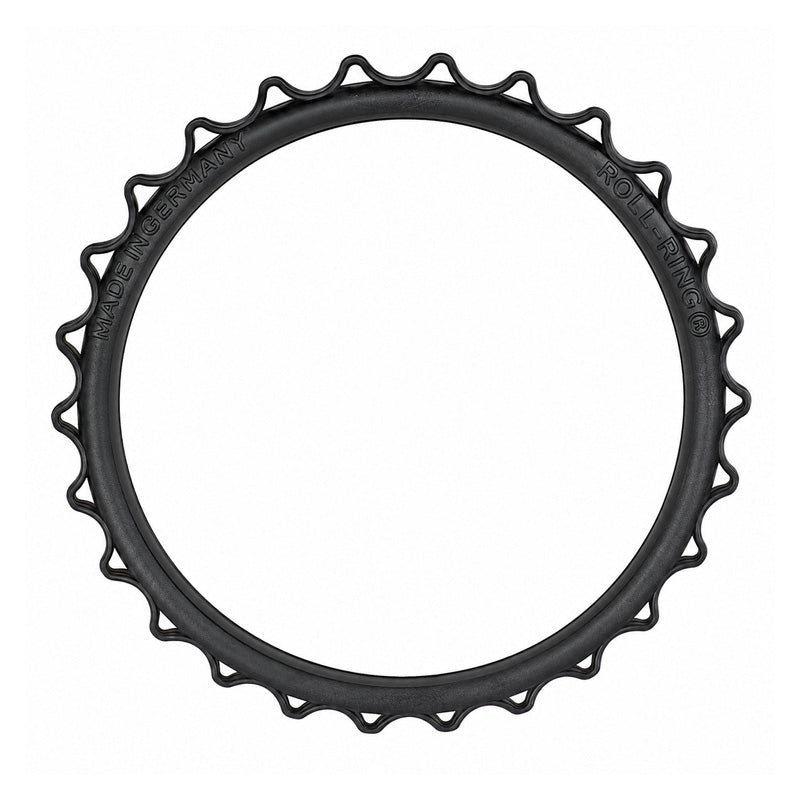

Renold 26 Tooth 16-B Roll Ring for 1 inch Pitch - Ambient Temperature -8 to+80°C
Renold 26 Tooth 16-B Roll Ring for 1 inch Pitch - Ambient Temperature -8 to+80°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the requirements of higher operating temperatures. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 26
- Pitch:
- 1 inches
Technical
Technical
| do | 207mm |
|---|---|
| di | 167mm |
| s | 45mm |
| A | 269mm |
| D = do-s | 162mm |
| Chain Dimension - p x b1- inches | 1"x17mm |
| Max Static Expansive Force - N** | 139.8 |
| Maximum Chain Speed m/s | 3.5 |
| Ambient Temperature (°C) | -8 to+80 |
| Weight (kg) | 0.115 |
