SKU: 13685/13621D/X2S13687-TIM

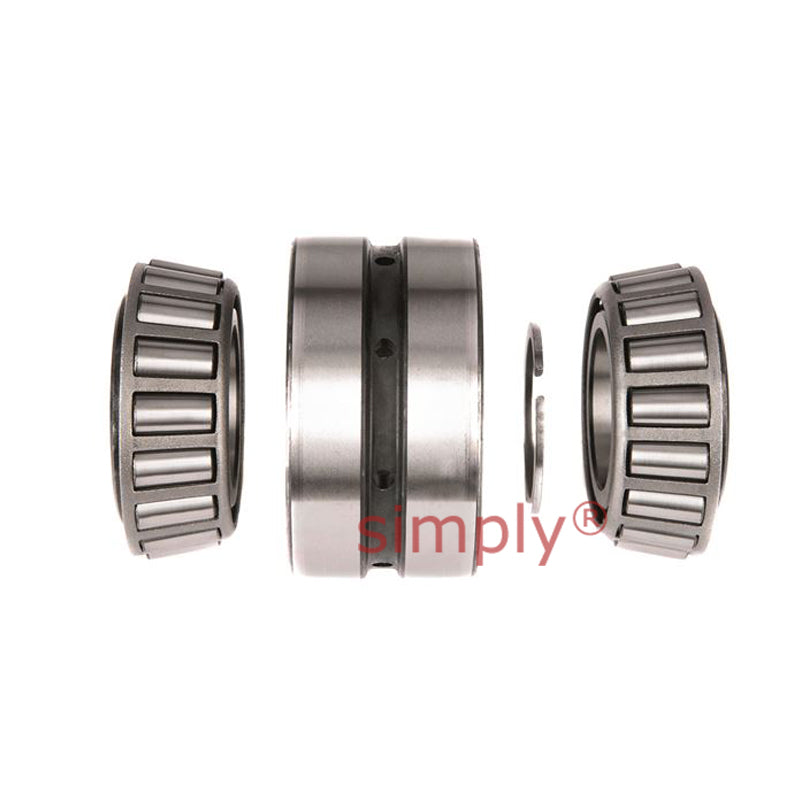

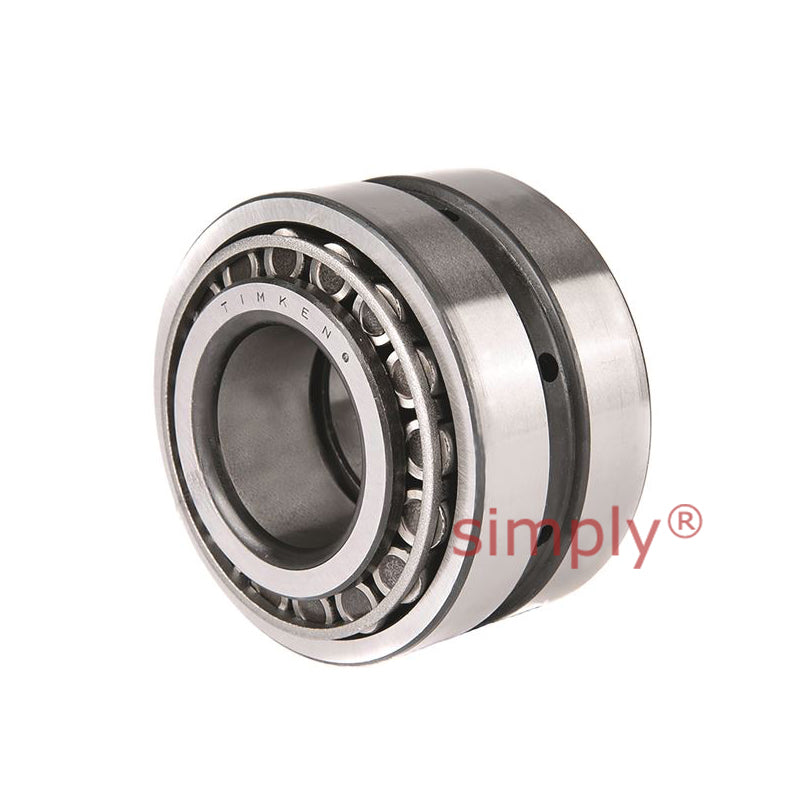

Timken 13685/13621D/X2S13687 TDO Double Outer Race Taper Roller Bearing 1.5x2.717x1.8124x1.5 inch
Timken 13685/13621D/X2S13687 TDO Double Outer Race Taper Roller Bearing 1.5x2.717x1.8124x1.5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 38.10mm = 1.5 inch
- Outside Diameter:
- 69.01mm = 2.717 inch
- Width:
- 46.04mm = 1.8124 inch
Technical
Technical
| d | 38.1mm = 1.5 inch |
|---|---|
| D | 69.012mm = 2.717 inch |
| T | 46.035mm = 1.8124 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 91400N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 13600N |
| Dynamic (2) Ca90 | 9370N |
| Dynamic (2) C90(2) | 23700N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 49.5mm = 1.95 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 65mm = 2.56 inch |
| G1 | 20.7 |
| G2 | 10.9 |
| Cg | 0.0713 |
