SKU: 1345-1.3/4-RHP

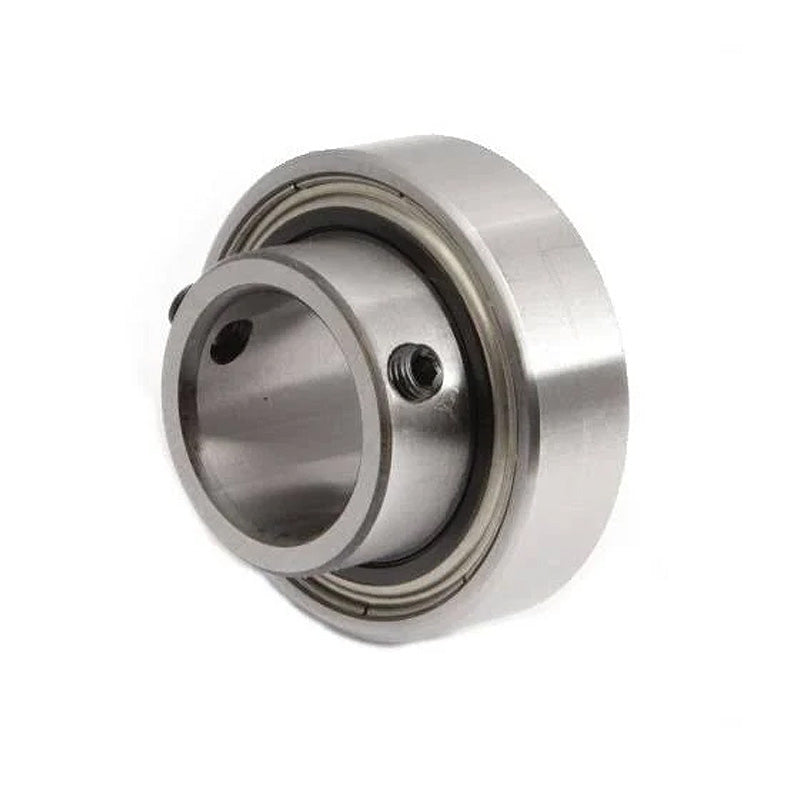

RHP 1345-1-3/4 Parallel Outer Flat Back Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
RHP 1345-1-3/4 Parallel Outer Flat Back Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
Out of stock
Description
Description
|
RHP 1300 Series: Flat back bearing insert with parallel outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- 1345
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| D | 3.3465 inch |
| C | 0.748 inch |
| B1 | 1.621 inch |
| s1 | 0.435 inch |
| d1 | 2.256 inch |
| M | 0.313 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.61 kg |
