SKU: 1245-1.5/8EC-RHP

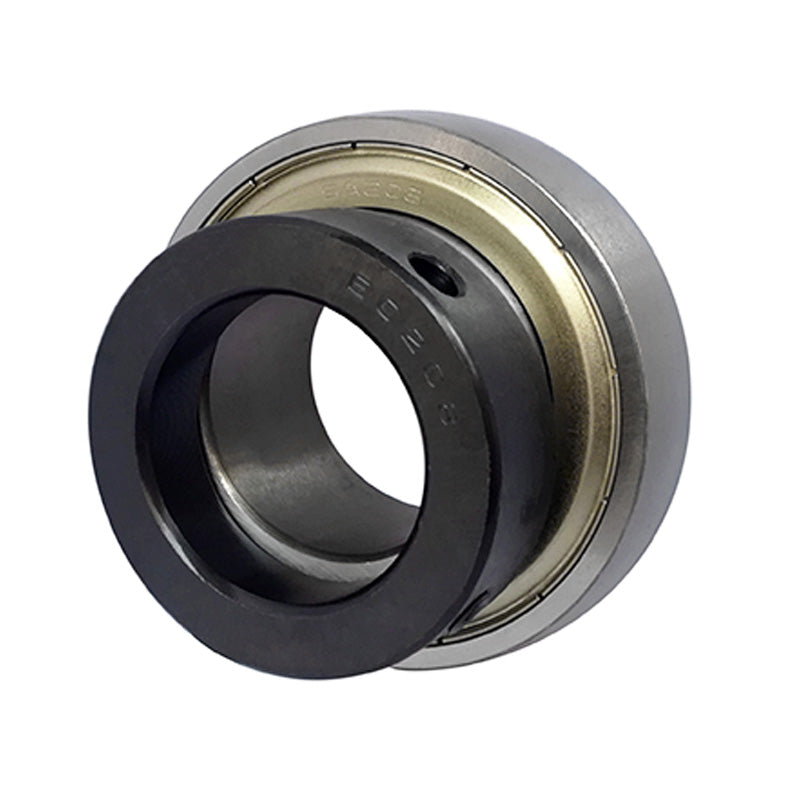

RHP 1245-1-5/8EC Spherical Outer Flat Back Collar Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter
RHP 1245-1-5/8EC Spherical Outer Flat Back Collar Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter
Out of stock
Description
Description
|
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- 1245
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| D | 3.3465 inch |
| C | 0.748 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.5 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.87 kg |
