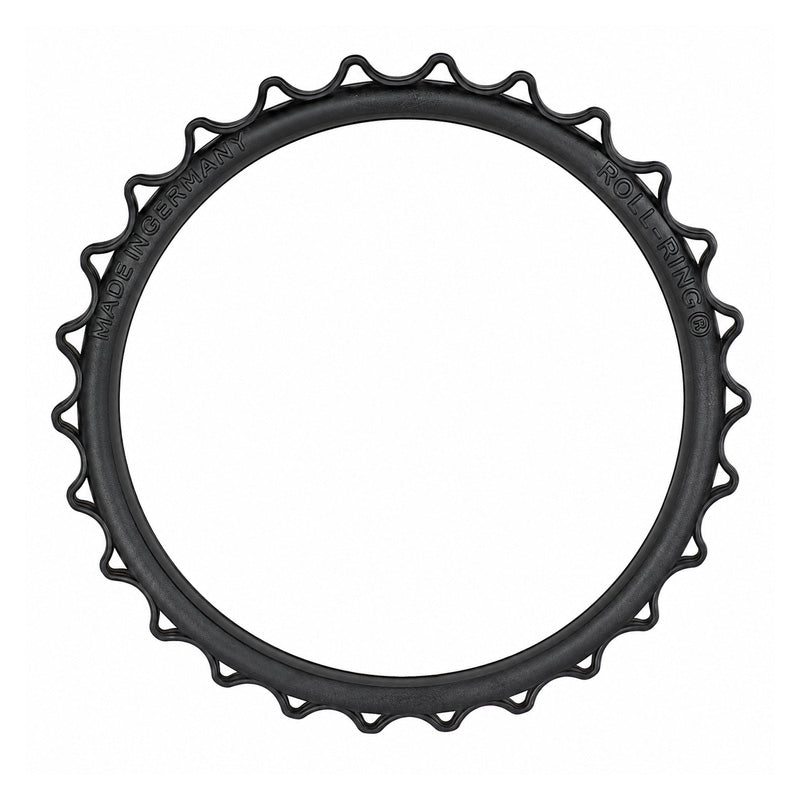

Renold 26 Tooth 12-B Roll Ring for 3/4 inch Pitch - Ambient Temperature -20 to+70°C
Renold 26 Tooth 12-B Roll Ring for 3/4 inch Pitch - Ambient Temperature -20 to+70°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 26
- Pitch:
- 3/4 inches
Technical
Technical
| do | 155mm |
|---|---|
| di | 127.6mm |
| s | 35mm |
| A | 209.5mm |
| D = do-s | 120mm |
| Chain Dimension - p x b1- inches | 3/4x7/16 |
| Max Static Expansive Force - N** | 39.2 |
| Maximum Chain Speed m/s | 5.4 |
| Ambient Temperature (°C) | -20 to+70 |
| Weight (kg) | 0.045 |
