SKU: 1070-2.5/8DECG-RHP

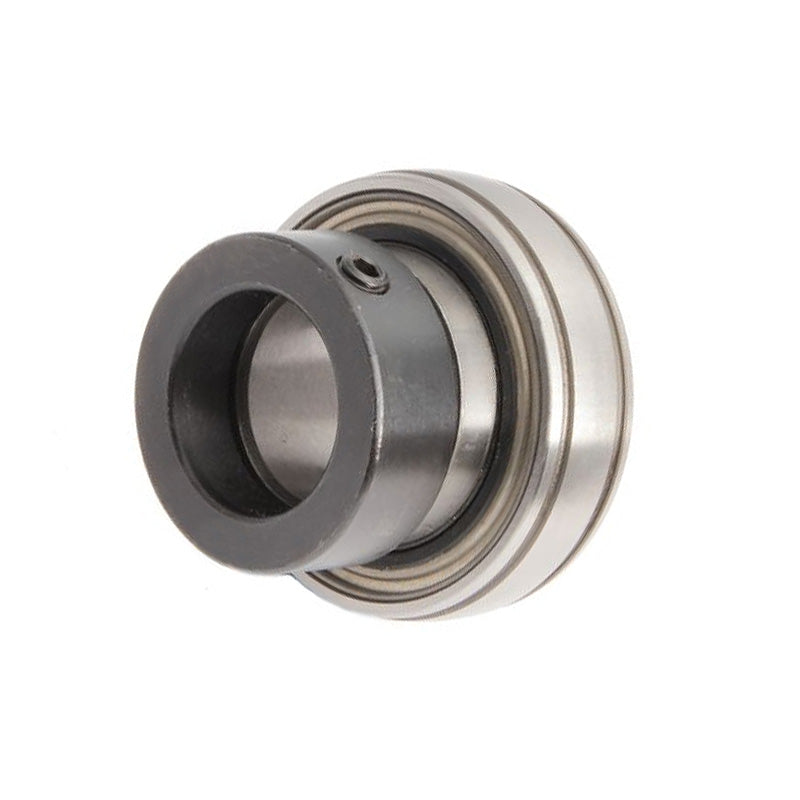

RHP 1070-2-5/8DECG Spherical Outer Full Width Bearing Insert 2-5/8 inch Bore 125mm Outside Diameter
RHP 1070-2-5/8DECG Spherical Outer Full Width Bearing Insert 2-5/8 inch Bore 125mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Outside Diameter:
- 125mm
- Style:
- 1070
Technical
Technical
| Bore | 2-5/8 inch |
|---|---|
| D | 4.9213 inch |
| C | 0.945 inch |
| B3 | 3.361 inch |
| s2 | 1.346 inch |
| d2 | 3.812 inch |
| r | 0.059 inch |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 2.56 kg |
