SKU: 10-B-26-01-ROLL-REN

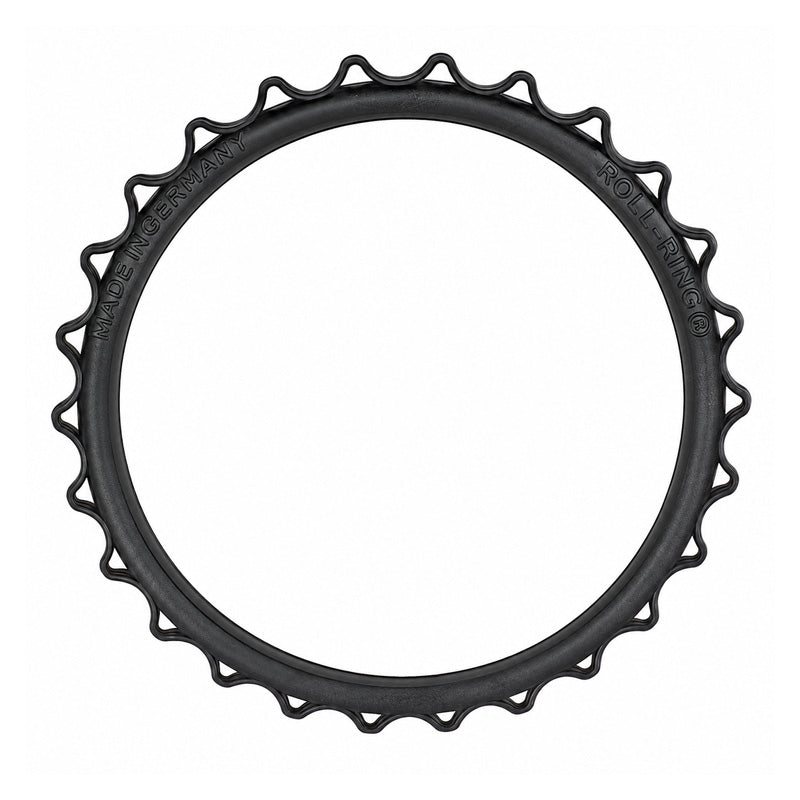

Renold 26 Tooth 10-B Roll Ring for 5/8 inch Pitch - Ambient Temperature -20 to+70°C
Renold 26 Tooth 10-B Roll Ring for 5/8 inch Pitch - Ambient Temperature -20 to+70°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 26
- Pitch:
- 5/8 inches
Technical
Technical
| do | 128.4mm |
|---|---|
| di | 105mm |
| s | 28mm |
| A | 153mm |
| D = do-s | 100.4mm |
| Chain Dimension - p x b1- inches | 5/8x3/8 |
| Max Static Expansive Force - N** | 28.2 |
| Maximum Chain Speed m/s | 4.2 |
| Ambient Temperature (°C) | -20 to+70 |
| Weight (kg) | 0.025 |
