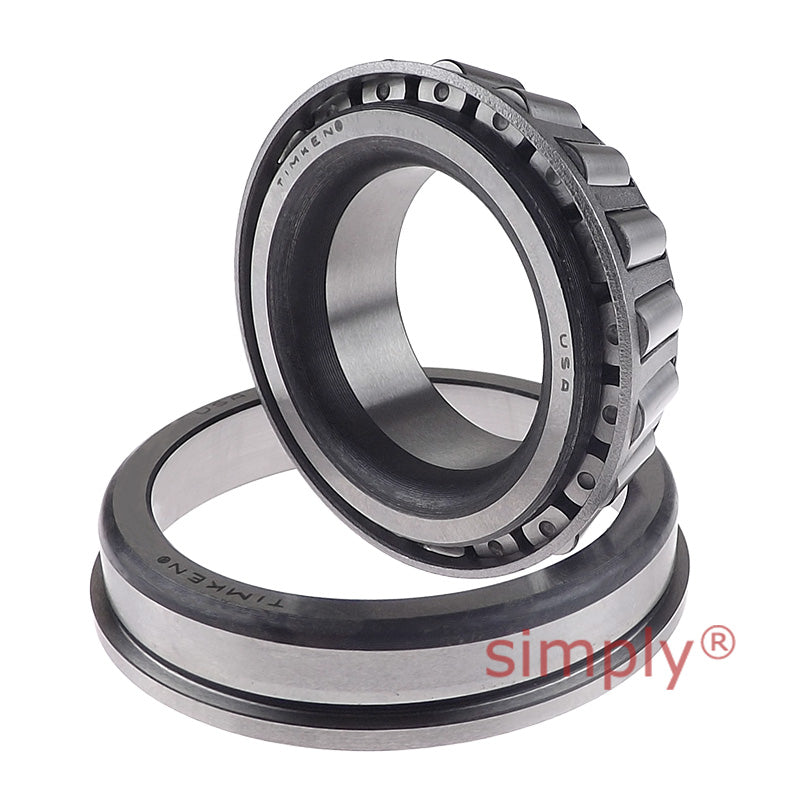

Timken 07100SA/07210XB TSF Single-Row Taper Roller Bearing 1x2x0.591 inch
Timken 07100SA/07210XB TSF Single-Row Taper Roller Bearing 1x2x0.591 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 15.01mm = 0.591 inch
Technical
Technical
| d | 25.4mm = 1 inch |
|---|---|
| D | 50.8mm = 2 inch |
| T1 | 5.08mm = 0.2 inch |
| Dynamic (1) C1 | 27000N |
| Factors (5) e | 0.4 |
| Factors (5) Y | 1.49 |
| Dynamic (2) C90 | 6990N |
| Dynamic (2) Ca90 | 4810N |
| Factors (5) K | 1.45 |
| Static Co | 29600N |
| Bearing B | 14.26mm = 0.5614 inch |
| Bearing C | 12.7mm = 0.5 inch |
| Bearing a(3) | -2.8mm = -0.11 inch |
| Bearing D1 | 54.762mm = 2.156 inch |
| Bearing C2 | 2.769mm = 0.109 inch |
| Shaft max shaft fillet radius R(4) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 29.5mm = 1.16 inch |
| Shaft backing shoulder diameter db | 35mm = 1.38 inch |
| Housing backing shoulder diameter Da | 49mm = 1.93 inch |
| G1 | 7.6 |
| G2 | 7.07 |
| Cg | 0.0509 |
