SKU: UST207-SNR

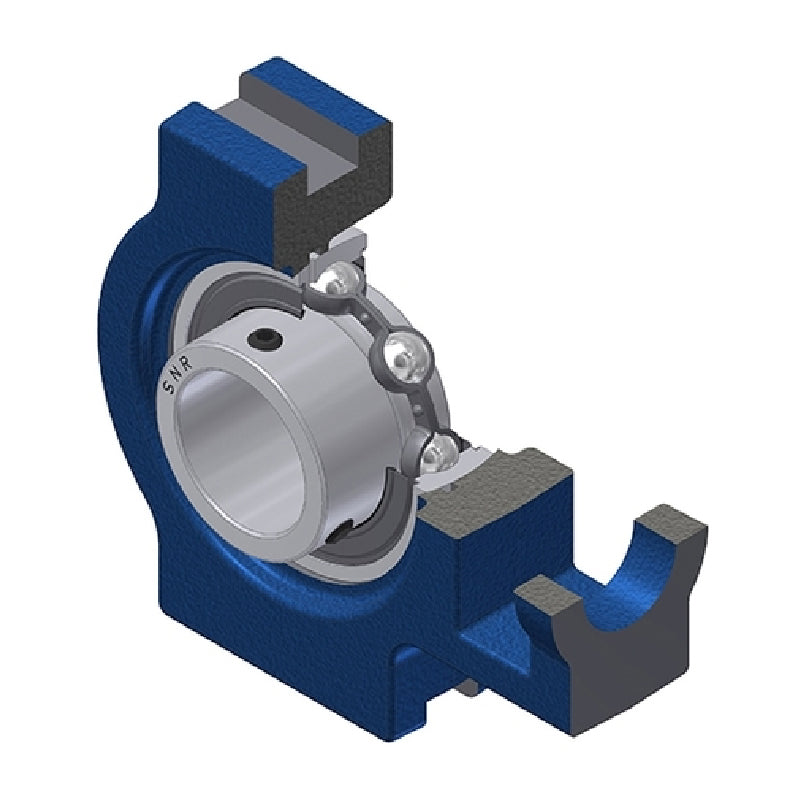

SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
In stock
Quantity Price Breaks
10+
$53.12
19+
$50.13
29+
$49.53
39+
$48.94
49+
$48.34
74+
$47.74
99+
$44.76
199+
$44.16
249+
$43.57
499+
$42.97
999+
$41.78
SKU:
UST207-SNR
SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

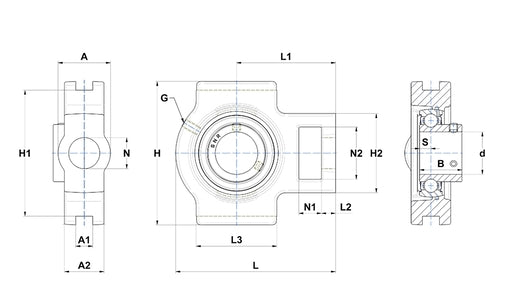

| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 37mm |
| A1 | = | 12mm |
| A2 | = | 30mm |
| B | = | 32mm |
| H | = | 102mm |
| H1 | = | 89mm |
| H2 | = | 64mm |
| L | = | 129mm |
| L1 | = | 78mm |
| L2 | = | 13mm |
| L3 | = | 64mm |
| N | = | 22mm |
| N1 | = | 16mm |
| N2 | = | 37mm |
| S | = | 8.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.52 kg |
