SKU: USP208-24-SNR

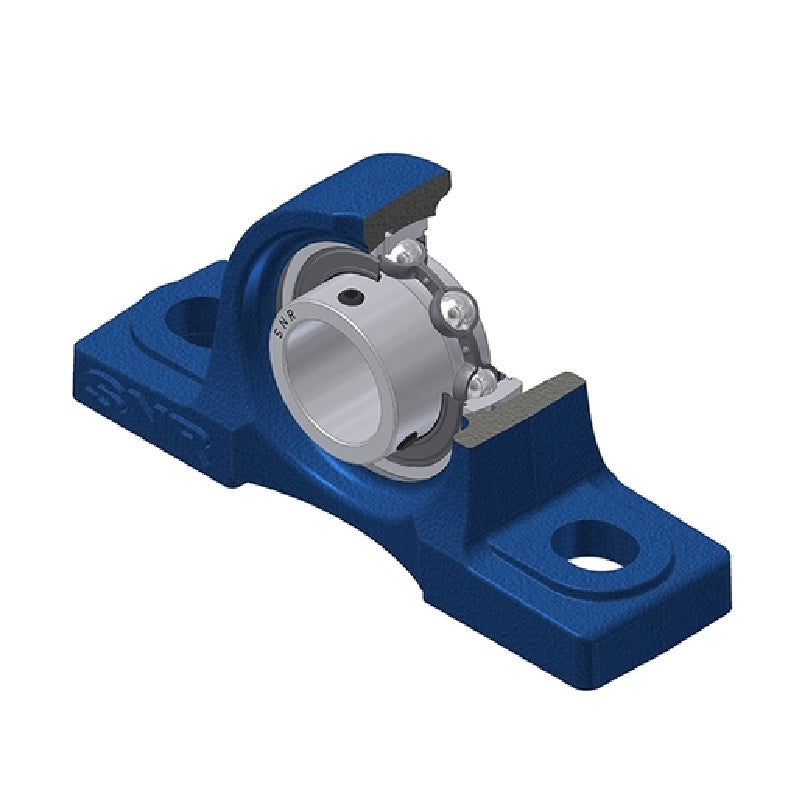

SNR USP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
- Regular price
- $41.09 ex VAT
- Sale price
- $41.09
- Regular price
-
In stock
Quantity Price Breaks
10+
$36.57
19+
$34.52
29+
$34.10
39+
$33.69
49+
$33.28
74+
$32.87
99+
$30.82
199+
$30.41
249+
$30.00
499+
$29.58
999+
$28.76
SKU:
USP208-24-SNR
SNR USP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert
- Regular price
- $41.09 ex VAT
- Sale price
- $41.09
- Regular price
-
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1-1/2 inch |
| A | = | 54mm |
| A1 | = | 34mm |
| B | = | 34mm |
| H | = | 49.2mm |
| H1 | = | 19mm |
| H2 | = | 100mm |
| J | = | 137mm |
| L | = | 184mm |
| L1 | = | 52mm |
| N | = | 17mm |
| N1 | = | 23mm |
| S | = | 9mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 8 Nm |
| Mass | = | 2.1 kg |
