SKU: USP206-20-SNR

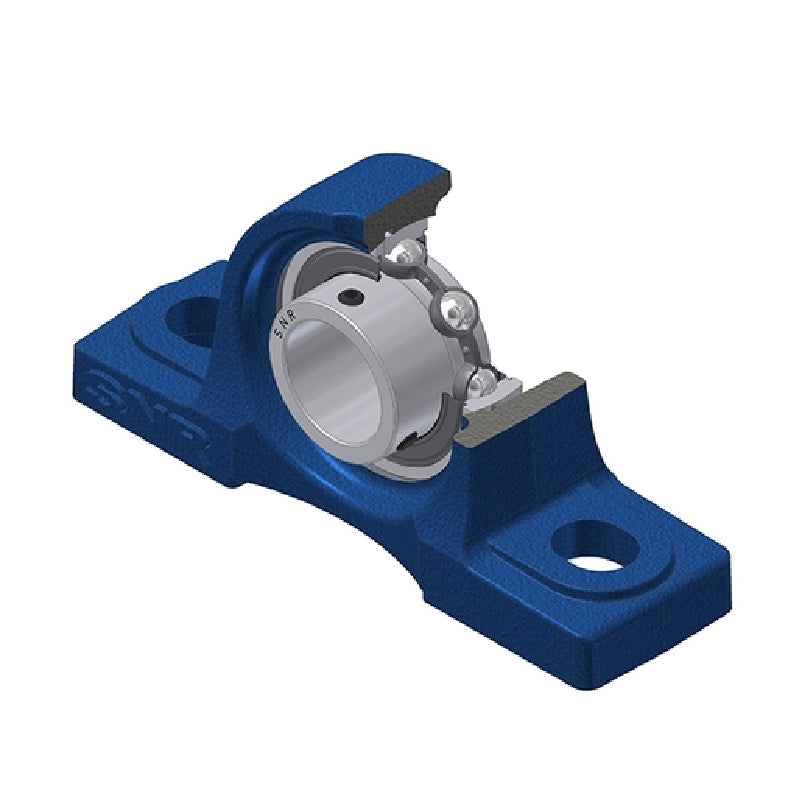

SNR USP206-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$28.22
19+
$26.64
29+
$26.32
39+
$26.00
49+
$25.69
74+
$25.37
99+
$23.78
199+
$23.47
249+
$23.15
499+
$22.83
999+
$22.20
SKU:
USP206-20-SNR
SNR USP206-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1-1/4 inch |
| A | = | 48mm |
| A1 | = | 30mm |
| B | = | 30mm |
| H | = | 42.9mm |
| H1 | = | 18mm |
| H2 | = | 83mm |
| J | = | 121mm |
| L | = | 165mm |
| L1 | = | 54mm |
| N | = | 17mm |
| N1 | = | 21mm |
| S | = | 8mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 1.28 kg |
