SKU: USFL206-SNR

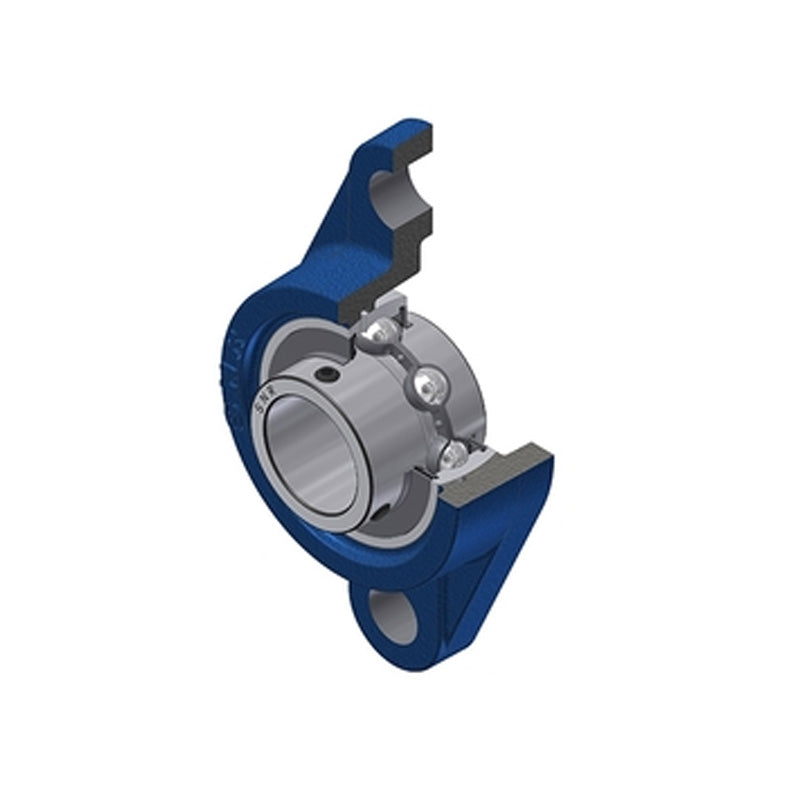

SNR USFL206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$28.22
19+
$26.64
29+
$26.32
39+
$26.00
49+
$25.69
74+
$25.37
99+
$23.78
199+
$23.47
249+
$23.15
499+
$22.83
999+
$22.20
SKU:
USFL206-SNR
SNR USFL206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 31mm |
| A1 | = | 13mm |
| A2 | = | 40mm |
| B | = | 30mm |
| e | = | 18mm |
| H | = | 148mm |
| J | = | 117mm |
| L | = | 80mm |
| N | = | 16mm |
| S | = | 8mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.84 kg |
