SKU: USFEE210-SNR

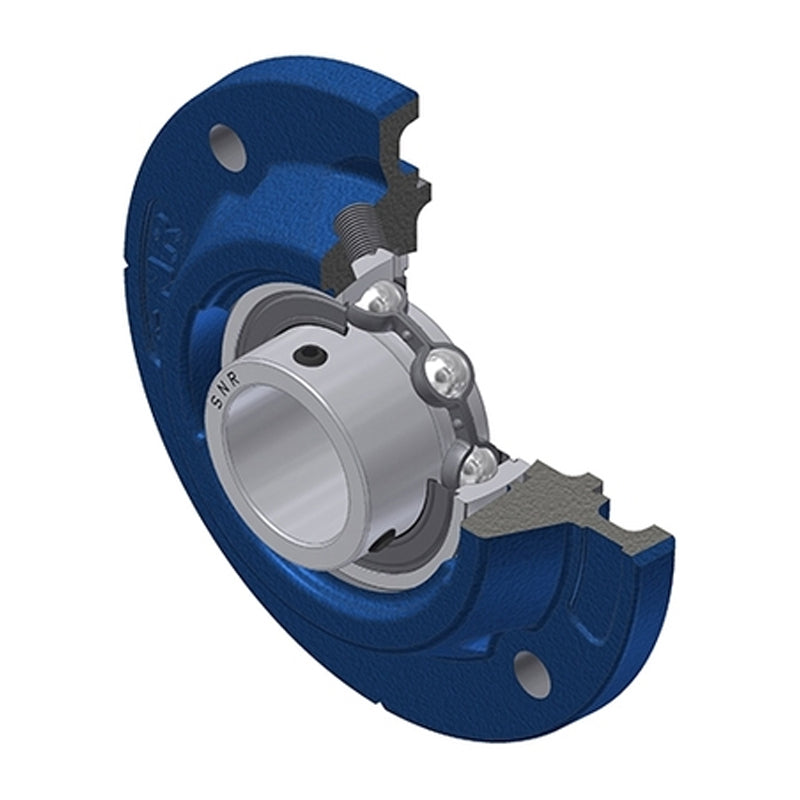

SNR USFEE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
In stock
Quantity Price Breaks
10+
$53.12
19+
$50.13
29+
$49.53
39+
$48.94
49+
$48.34
74+
$47.74
99+
$44.76
199+
$44.16
249+
$43.57
499+
$42.97
999+
$41.78
SKU:
USFEE210-SNR
SNR USFEE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
Description
USFEE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical

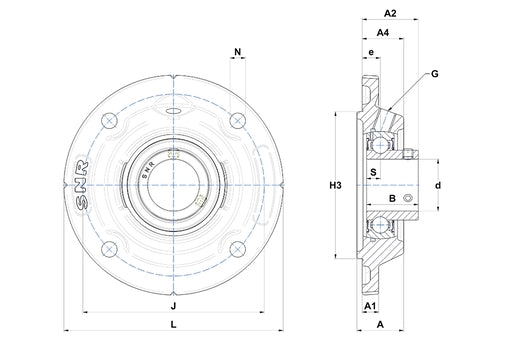

| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 32.5mm |
| A1 | = | 13mm |
| A2 | = | 45.1mm |
| A4 | = | 28.5mm |
| B | = | 43.5mm |
| e | = | 12.5mm |
| H3 | = | 115mm |
| J | = | 136mm |
| L | = | 165mm |
| N | = | 14mm |
| S | = | 10.9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.46 kg |
