SKU: USFE205-SNR

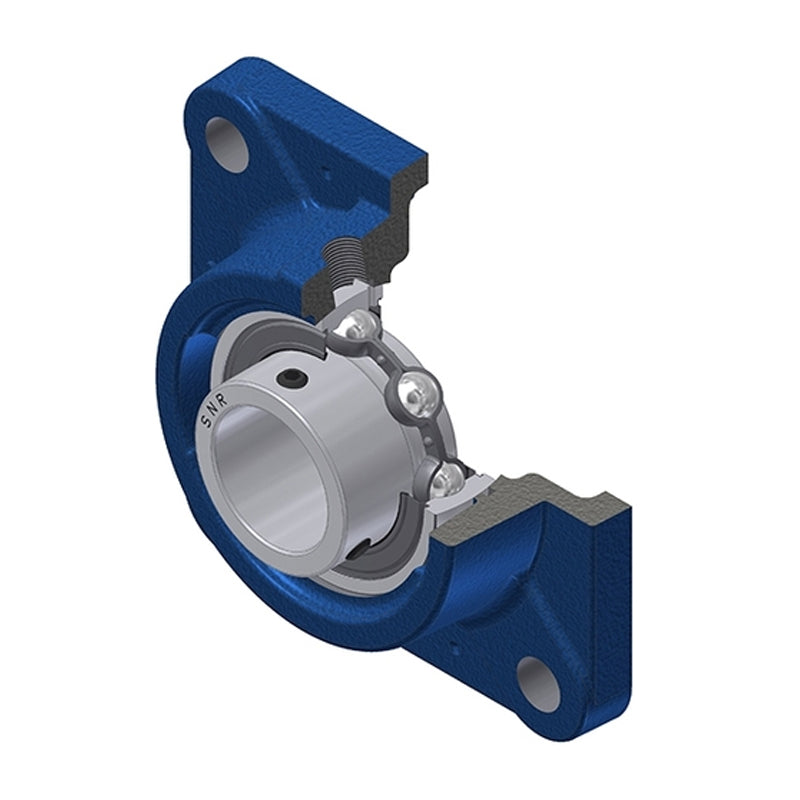

SNR USFE205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- $29.84 ex VAT
- Sale price
- $29.84
- Regular price
-
In stock
Quantity Price Breaks
10+
$26.56
19+
$25.07
29+
$24.77
39+
$24.47
49+
$24.17
74+
$23.87
99+
$22.38
199+
$22.08
249+
$21.78
499+
$21.48
999+
$20.89
SKU:
USFE205-SNR
SNR USFE205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- $29.84 ex VAT
- Sale price
- $29.84
- Regular price
-
Description
USFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical

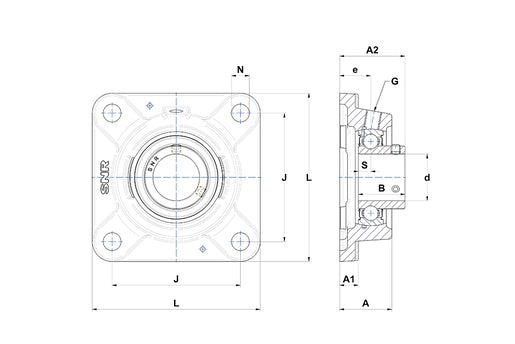

| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 30mm |
| A1 | = | 11mm |
| A2 | = | 38.5mm |
| B | = | 27mm |
| e | = | 19mm |
| J | = | 70mm |
| L | = | 95mm |
| N | = | 11.5mm |
| S | = | 7.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.77 kg |
