SKU: USFCE205-SNR

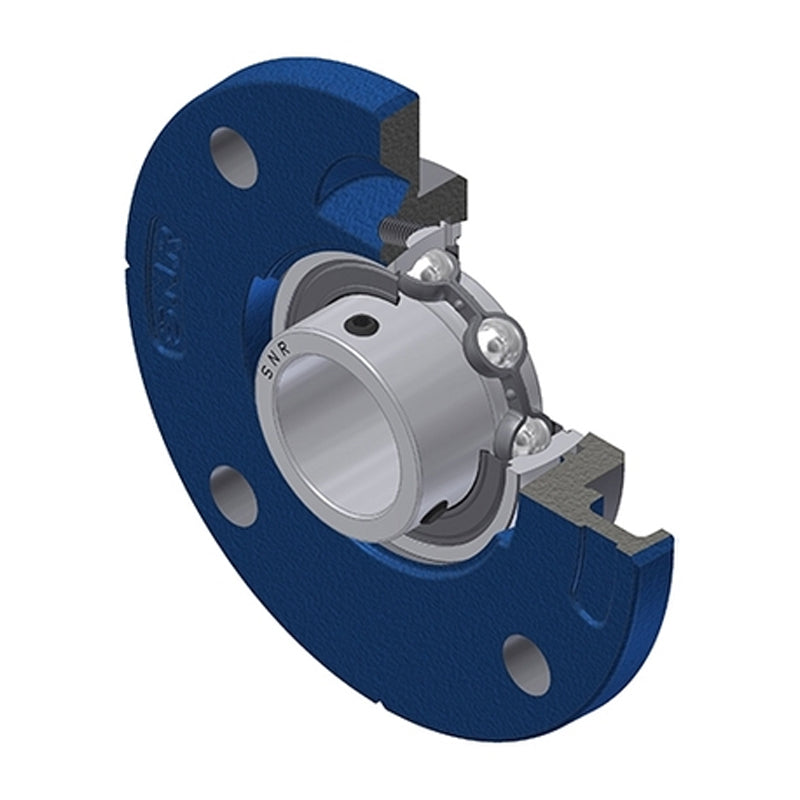

SNR USFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$28.22
19+
$26.64
29+
$26.32
39+
$26.00
49+
$25.69
74+
$25.37
99+
$23.78
199+
$23.47
249+
$23.15
499+
$22.83
999+
$22.20
SKU:
USFCE205-SNR
SNR USFCE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical

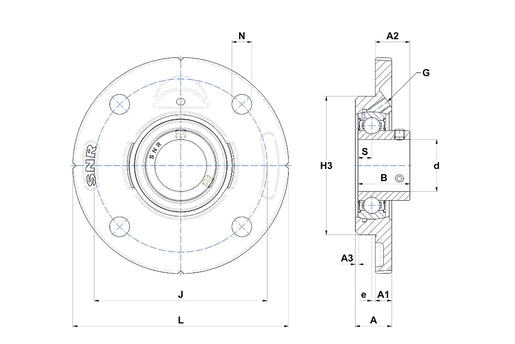

| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 20mm |
| A1 | = | 9mm |
| A2 | = | 17mm |
| A3 | = | 2mm |
| B | = | 27mm |
| e | = | -2.5mm |
| H3 | = | 70mm |
| J | = | 90mm |
| L | = | 115mm |
| N | = | 9mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.74 kg |
