SKU: USF210-SNR

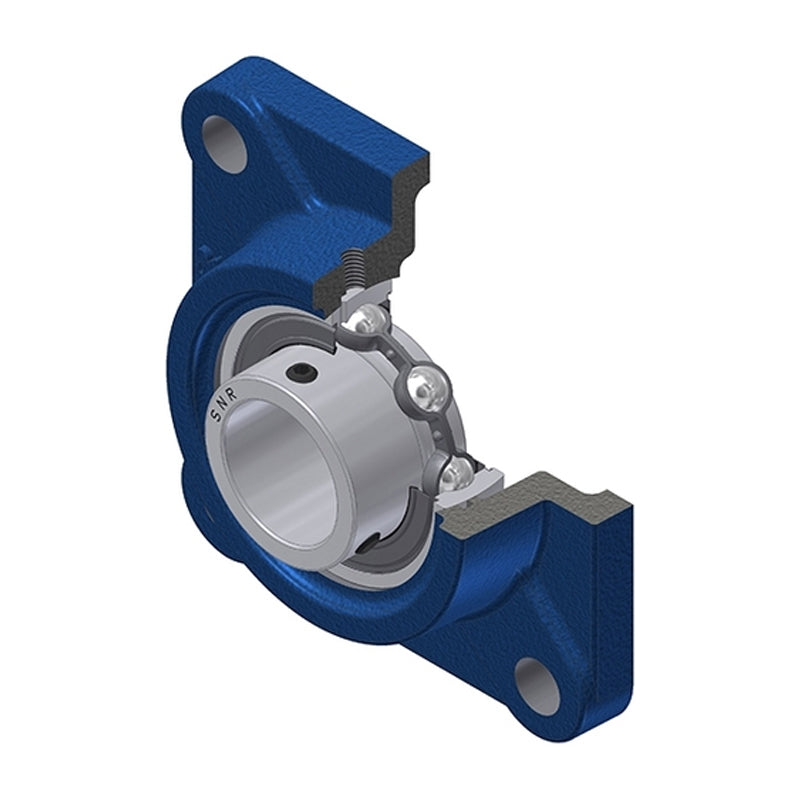

SNR USF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $59.41 ex VAT
- Sale price
- $59.41
- Regular price
-
Not in stock
Quantity Price Breaks
3
$52.87
4
$49.90
9
$49.31
19
$48.72
49
$48.12
99
$47.53
499
$44.56
999
$43.96
1999
$43.37
2999
$42.78
4999
$41.59
SKU:
USF210-SNR
SNR USF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $59.41 ex VAT
- Sale price
- $59.41
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 16mm |
| A2 | = | 54.6mm |
| B | = | 43.5mm |
| e | = | 22mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 16mm |
| S | = | 10.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.46 kg |
